Place of Origin: | China |
Brand Name: | CAT |
Certification: | CE |
Model Number: | CAT 306 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | 3000-100000USD/SET |
Packaging Details: | PLASTIC FILM PLAIN PACKAGING |
Delivery Time: | 10 WORKING DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 SET PRR QUARTER |
Name: | CAT 306 Hydraulic Excavator | Machine Weight: | 5705kg |
---|---|---|---|
Max.digging Height: | 5425mm | Max.unloading Height: | 3811mm |
Max.digging Depth: | 3741mm | Engine Type: | Cat C2.4 Turbine Engine |
Engine Output Power: | 34.1 Kw | Warranty: | One Year |

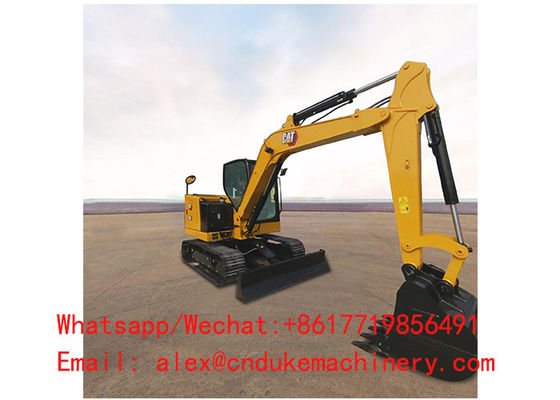

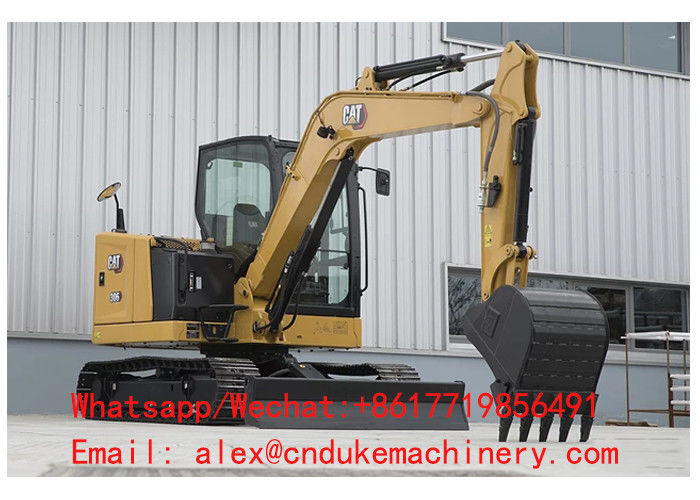

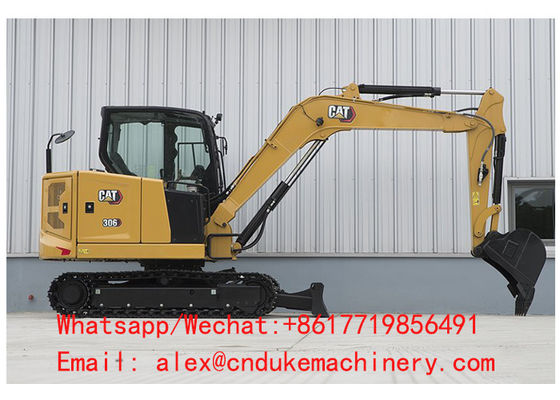

CAT 306 Steel Crawler Mini Type Hydraulic Multifunction Excavator
Machine features
Work speed adjustable: size arm, bucket, swing speed can be individually adjusted to meet your pursuit of speed.
Equipped with a single handle to control the walking mode, the handle makes walking and steering easy.
The forehand operates the mode converter, making switching easily via the display.
With air pressure sensor, automatically adapt to high altitude operating conditions.
The tool has a maximum flow that can be adjusted and is equipped with continuous flow.
Main tecnical data:
Model | 306 |
Operation Weight | 5705kg |
Bucket capacity (m³) | 0.22 |
Rated Power | 34.1kw |
Engine model | Cat C2.4 turbine engine |
Transport Dimensions (mm) | 5766*1980*2143 |
Maximum Traction | 51 KN |
Device | |
Maximum Working Speed | 5Km/h |
Climbing Performance | 30° |
Radius of tail rotation | 1585mm |
Width of the Crawler | 400mm |
Ground Pressure (Kpa) | 31.1 |
Turning Speed (rpm) | 11.3rpm |
Operating Scope | |
Maximum Digging Height | 5425mm |
Maximum Dumping Height | 3811mm |
Maximum Digging Depth | 3741mm |
Maximum Digging Radius | 5952mm |
Much more details about CAT 306 mini multifunction excavator:
1. Engine system characteristics.
CAT C-Series direct injection engines.
Low fuel consumption and high fuel efficiency.
Low cost of use.
Convenient maintenance.
Automatic idle/auto-saving shutdown can be set.
The ambient temperature adapts to 49 degrees C.
Cold start-up capacity - 15 degrees C.
2. Third generation intelligent hydraulic system features and cab features
Lower fuel consumption, smooth movement and precise handling.
One-in-one; Seal the boost; Low noise; Anti-roll.
3. Next-generation LCD integrated display (control experience like a mobile phone)
5. Easy to service.
Convenient service features make maintenance easier and reduce downtime:
The side lift cover provides access to air filters, mains valves, one-way/bidirectional-auxiliary flow selectors, accumulators, fuel filters and hydraulic tanks. This eliminates the need to raise the cab when the machine is serviced and serviced.
The revolving door provides easy access to major components and service points, including engine oil inspection and perfusion points, vertically mounted engine oil filters, starting motors and alternators.
