Place of Origin: | China |
Brand Name: | CAT |
Certification: | CE |
Model Number: | CAT 307 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | 3000-100000USD/SET |
Packaging Details: | PLASTIC FILM PLAIN PACKAGING |
Delivery Time: | 10 WORKING DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 SET PRR QUARTER |
Name: | CAT 307 Hydraulic Excavator | Machine Weight: | 7000kg |
---|---|---|---|
Max.digging Height: | 7240mm | Max.unloading Height: | 5200mm |
Max.digging Depth: | 4070mm | Engine Type: | Cat C2.4 Turbine Engine |
Engine Output Power: | 36.5 Kw | Warranty: | One Year |

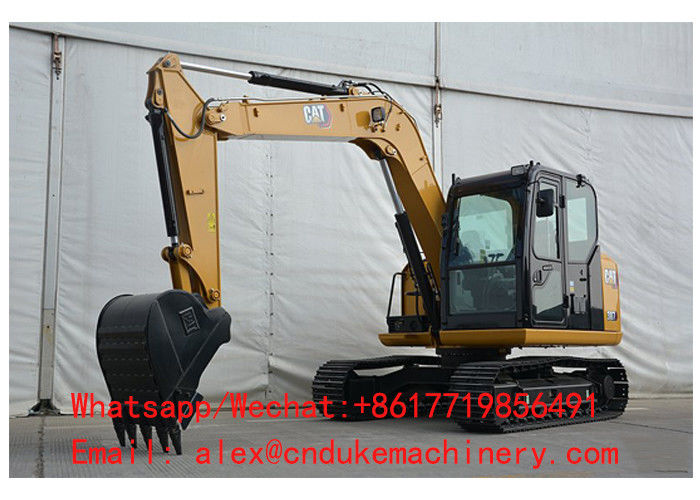

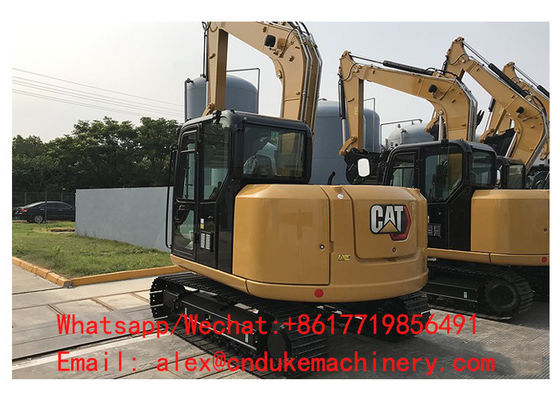

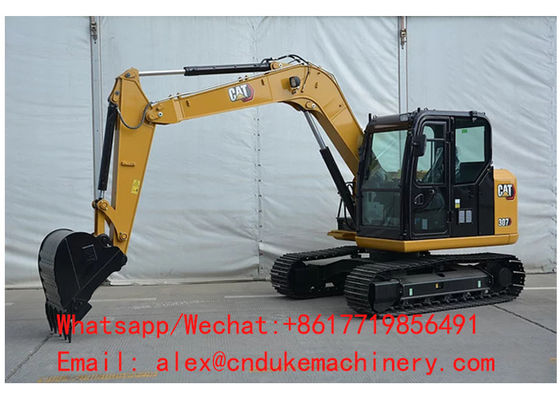

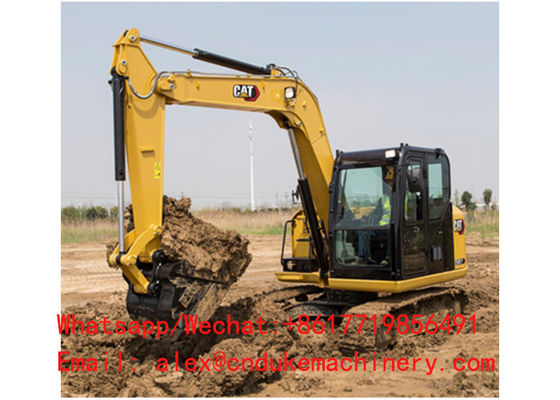

CAT 307 Steel Crawler Mini Type Hydraulic Multifunction Excavator
Machine introduction
The Cat 307 Mini Hydraulic Excavator features a standard tail and fixed side boom design for high performance with low fuel consumption. A durable and reliable structure helps you balance high productivity and low operating costs in a wide range of applications.
Main tecnical data:
Model | 307 |
Operation Weight | 7000 kg |
Bucket capacity (m³) | 0.33 |
Rated Power | 36.5 kw |
Engine model | Cat C2.4 turbine engine |
Transport Dimensions (mm) | 6055*2300*2630 |
Bucket Digging Force | 53.2 KN |
Bucket Rob Digging Force | 36.3 KN |
Maximum Traction | 56.9 KN |
Device | |
Maximum Working Speed | 5.1Km/h |
Climbing Performance | 30° |
Radius of tail rotation | 1750mm |
Width of the Crawler | 450mm |
Turning Speed (rpm) | 10.8rpm |
Hydraulic System | |
Main Pump Pressure | 28500bar |
Main Pump Flow | 147 L/min |
Operating Scope | |
Maximum Digging Height | 7240mm |
Maximum Dumping Height | 5200mm |
Maximum Digging Depth | 4070mm |
Maximum Digging Radius | 6300mm |
CAT 307 mini multifunction excavator machine features:
1. The spacious cab, large access space, ergonomic joysticks, standard suspension seats and radios with auxiliary inputs increase operator comfort.
2. The efficient Cat C2.4 DI turbo engine provides excellent fuel efficiency.
3. Powerful digging power, shorter cycle times and excellent stability help increase your productivity.
4. The heavy-duty structural design ensures the durability and reliability of the machine.
5. The optional blade has an additional floating function for increased versatility.
6. The 100% pilot control and load sensing hydraulic system deliver smooth, powerful performance.
7. The two large side ⻔ provide good service and service convenience.
8. The low center of gravity mating extending to both sides of the machine improves stability.
9. Optional hydraulic lines and blade options allow the machine to operate in a wider range of applications.
10. The standard/power dual mode allows you to choose your own lower fuel consumption or higher productivity with one click.
Standard features of the CAT 307
Durable travel motors and swing motors provide excellent swing performance and reliability.
Monitors with battery voltage indicators and consoles with large armrests provide excellent control and comfort.
The automatic idle function reduces fuel consumption and noise.
The fuel tank sighting and hydraulic oil level meter are equipped with a protective cover.
The horn is placed in the toolbox for good protection.
Equipped with GPS for easy machine management.
Easy to service.
Convenient service features make maintenance easier and reduce downtime:
The side lift cover provides access to air filters, mains valves, one-way/bidirectional-auxiliary flow selectors, accumulators, fuel filters and hydraulic tanks. This eliminates the need to raise the cab when the machine is serviced and serviced.
The revolving door provides easy access to major components and service points, including engine oil inspection and perfusion points, vertically mounted engine oil filters, starting motors and alternators.
