|Place of Origin:||China|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||PLASTIC FILM PLAIN PACKAGING|
|Delivery Time:||10 WORKING DAYS|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 SET PRR QUARTER|
|Drilling Hold Diameter:||140-350m||Drilling Depth:||450m|
|Once-time Advance Length:||6.6m||Main Motor Power:||103kw|
|Using Air Pressure:||1.7-3.5MPA||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Usage:||Water Well||Power Type:||Diesel|
|Product Name:||Water Well Drilling Rig|

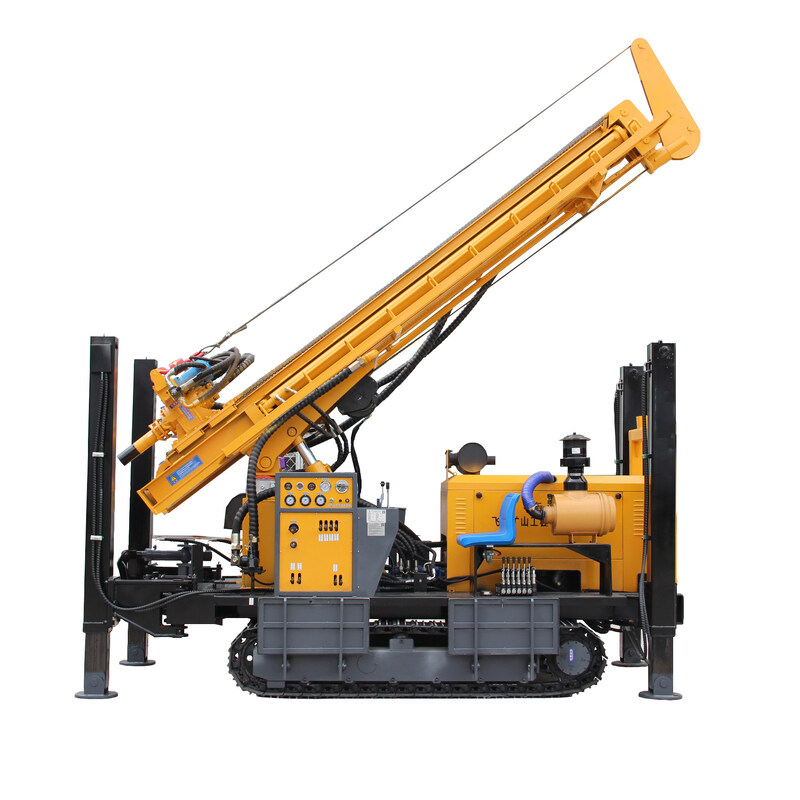

200m 300m 450m depth hydraulic multifunction deep air water well drilling rig
A: Machine introduction of water well drilling rig
DK Series Water Well Drilling Rig is a light, efficient and versatile drilling equipment powered by diesel engine which is from China famous brand. It is mainly suitable for drilling wells, agricultural irrigation wells and other uses, especially for water extraction in mountainous and rock formations engineering.
In addition,this series of drilling rigs using new hydraulic technology which is equipped with large-bore hydraulic cylinder advancement and high-torque hydraulic motor rotation.
B: Main technical data of water well drilling rig
|Drilling hold diameter(M)||140-350||140-203||140-325||140-325|
|Drilling depth (M)||450||200||300||350|
|Once-time advance length(M)||6.6||3.3||3.4||6.6|
|Walking speed (km/h)||2.5||2.5||2.5||2.5|
|Main motor power (kw)||103||65||85||92|
|Using air pressure (mpa)||1.7-3.5||1.7-3.0||1.7-3.0||1.7-3.3|
|Air consumption (m3/min)||17-35||17-30||17-35||17-35|
|Drill pipe diameter (mm)||89/102/108||76/89||76/89/102||89/102|
|Drill pipe length (m)||1.5/2/3||1.5/2/3||1.5/2/3||1.5/2/3|
|Rig lifting force(N)||25||13||18||24|
|Swing speed (rpm)||45-115||45-65||40-70||55-115|
|Swing torque (N.M)||6500-9000||3300-4700||5700-7500||6200-8500|
All our water drilling rig accept customization, any good idea there please contact us, our engineers will help you get what you want, we can also put the rig on a truck mounted chassis.
C: Product Usage and customer feeeback
Pneumatic dth air water well drilling rig machine mainly drilling rock .
It also can add mud pump to finish mud pump drilling,mainly used in rock mountain and plain area
D: Packing and shipping about water well drilling rig
Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 7 working days after deposit.
E: After sales service:
1.We can provide all-round technical guidance ff there is any problem about our machine;
2.7*24 hours multi-language professional after-sales service group
3.Construction solutions will be provided for different geological conditions.
4.All the accessories of that kind of machine can be provided for a long time.
F: Recommend Air Compressors and accessory for 450m depth portable water well drilling rig
G: Company certificate:
H: Company workshop environment:
Q1.What is the main function of our well drill rig machine?
Ans.: It has different models used for water well drill rig machine,mine blast hole drill,underground drill project,etc
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one. And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our products coming with the certificates of CE, ISO9001
