High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator

High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator

    • High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator
    • High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator
    • High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator
    • High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator
  • High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator

    Product Details:

    Place of Origin: China
    Brand Name: CAT
    Certification: CE
    Model Number: CAT 310

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 3000-100000USD/SET
    Packaging Details: PLASTIC FILM PLAIN PACKAGING
    Delivery Time: 10 WORKING DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 50 SET PRR QUARTER
    Contact Now
    Detailed Product Description
    Name: CAT 310 Hydraulic Excavator Machine Weight: 10172kg
    Max.digging Height: 8077mm Max.unloading Height: 5866mm
    Max.digging Depth: 5174mm Engine Type: Cat C3.3B Turbine Engine
    Engine Output Power: 55.4 Kw Warranty: One Year

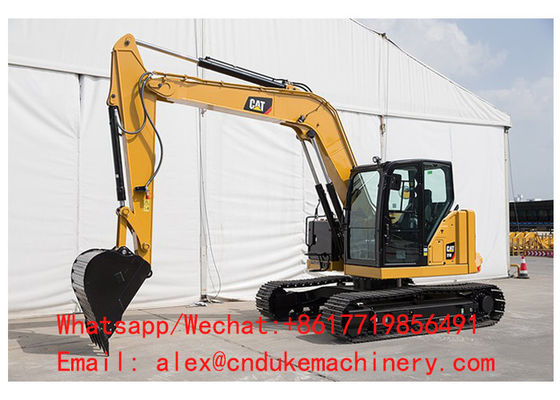

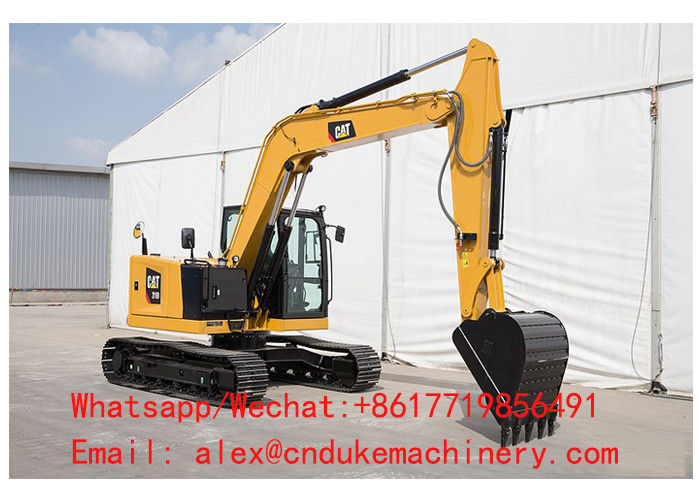

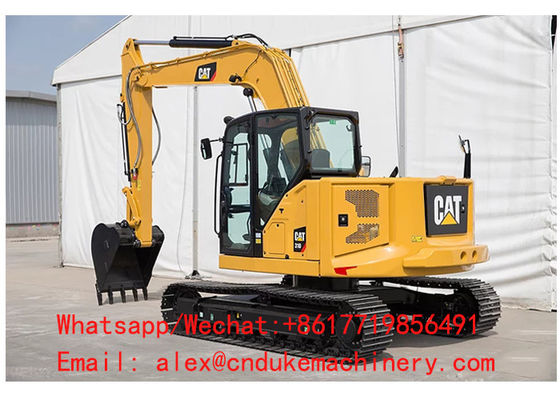

    CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator



    Machine introduction

    The Cat 310 small type Hydraulic Excavator features a standard tail and fixed side boom design for high performance with low fuel consumption. A durable and reliable structure helps you balance high productivity and low operating costs in a wide range of applications.

    High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator 0



    Main tecnical data:

    Model 310
    Operation Weight 10172 kg
    Bucket capacity (m³) 0.45
    Rated Power 55.4 kw
    Engine model Cat C3.3B turbine engine
    Transport Dimensions (mm) 6579*2470*2893
    Bucket Digging Force 77.7 KN
    Bucket Rob Digging Force 49.2 KN
    Maximum Traction 84.8 KN
    Device
    Maximum Working Speed 4.9Km/h
    Climbing Performance 30°
    Radius of tail rotation 1995mm with bod-weight
    Width of the Crawler 450mm
    Ground Pressure (Kpa) 44.15
    Turning Speed (rpm) 10.6rpm
    Hydraulic System
    Main Pump Pressure 28500bar
    Main Pump Flow 233 L/min
    Operating Scope
    Maximum Digging Height 8077mm
    Maximum Dumping Height 5866mm
    Maximum Digging Depth 5174mm
    Maximum Digging Radius 7644mm



    CAT 310 multifunction excavator machine features:

    A new generation of hydraulic control systems/single handles control the walking mode.
    A new generation of hydraulic control systems, large and small arms, buckets, swing speed can be adjusted to meet your pursuit of speed.
    Composite motion coordination is smooth, precise handling and more efficient.
    Equipped with a single handle to control the walking mode, the handle makes walking and steering easy

    High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator 1



    LCD HD display with integrated control interface.
    An easy-to-read machine with an integrated LCD HD display information for easy and easy multi-functional control (hydraulic flow of the work unit adjustable/continuous flow).

    High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator 2



    A brand new cab.
    Leading all-in-one sealed pressurized air-conditioned cab, dust-cancelling noise and roll-proof, get rid of the harsh working environment and give operators a comfortable 24/7 operating experience.
    Wireless key, Bluetooth music/phone as standard.



    High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator 3



    Easy to service.
    Convenient service features make maintenance easier and reduce downtime:
    The side lift cover provides access to air filters, mains valves, one-way/bidirectional-auxiliary flow selectors, accumulators, fuel filters and hydraulic tanks. This eliminates the need to raise the cab when the machine is serviced and serviced.
    The revolving door provides easy access to major components and service points, including engine oil inspection and perfusion points, vertically mounted engine oil filters, starting motors and alternators.

    High quality CAT 310 Steel Crawler Hydraulic Multifunction Small Type Excavator 4
