High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator

High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator

    • High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator
    • High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator
    • High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator
    • High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator
  • High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator

    Product Details:

    Place of Origin: China
    Brand Name: CAT
    Certification: CE
    Model Number: CAT 301.7CR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 3000-100000USD/SET
    Packaging Details: PLASTIC FILM PLAIN PACKAGING
    Delivery Time: 10 WORKING DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 50 SET PRR QUARTER
    Contact Now
    Detailed Product Description
    Name: CAT 301.7CR Excavator Machine Weight: 1835kg
    Max.digging Height: 3430mm Max.unloading Height: 2450mm
    Max.digging Depth: 2350mm Engine Type: Cat C1.1
    Engine Output Power: 16.1 Kw Warranty: One Year

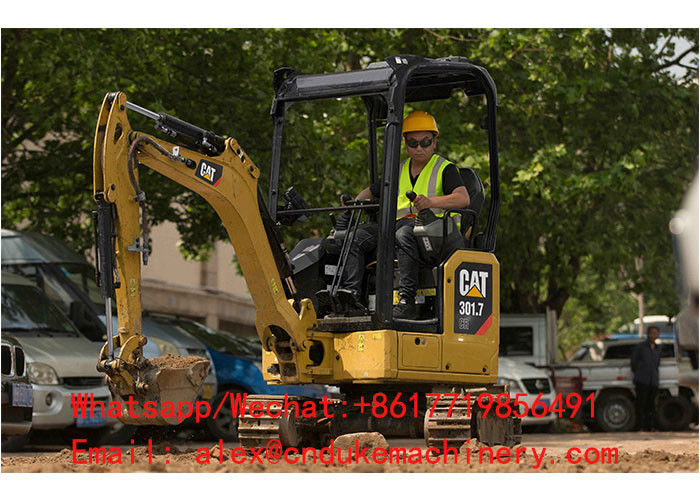

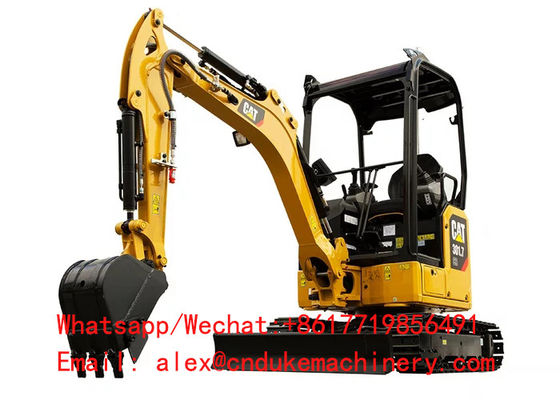

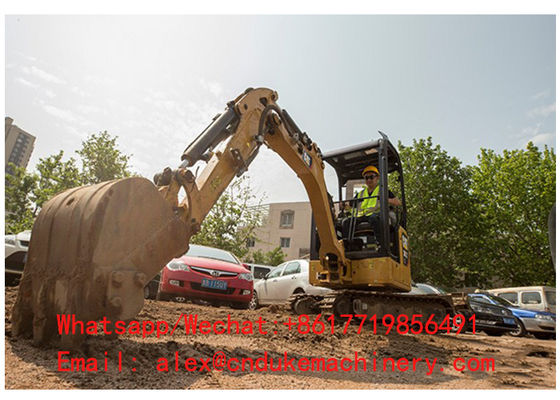

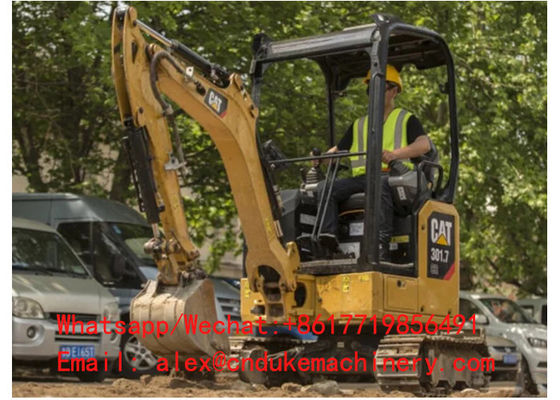

    CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator



    Machine features

    The mini excavator is compact in size, power and performance to help you easily handle a wide range of applications.

    Adjustable wristrests and suspension seats help you work comfortably throughout the day.

    High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator 0



    Main tecnical data:

    Model 301.5 301.7 302CR 303.5ECR
    Operation Weight 1630 kg 1835 kg 2200 kg 3732 kg
    Rated Power 16.1kw 16.1 kw 16.1 kw 23.6 kw
    Rotate Speed 2400 rpm 2400 rpm 2400 rpm
    Engine model Cat c1.1 Cat c1.1 Cat c1.1 Cat c1.8
    Transport Dimensions (mm) 3470*990*2310 3620*990*2300 3900*1090*2300 4730*1780*2500
    Bucket Digging Force 14.1 KN 16.2 KN 19.6 KN 18.9 KN
    Bucket Rob Digging Force 8.2 KN 9.5 KN 11.3 KN 16.9 KN
    Maximum Traction 16 KN 18.4 KN 20 KN 31 KN
    Device
    Maximum Working Speed 4.4Km/h 4.4Km/h 4.4Km/h 4.6Km/h
    Climbing Performance 30° 30° 30° 30°
    Minimum Radius of rotation 820mm 650mm 750mm 890mm
    Width of the Crawler 230mm 230mm 250mm 300mm
    Ground Pressure (Kpa) 30.6 28.7 26.8 32.1
    Turning Speed (rpm) 9.8rpm 9.8rpm 9.8rpm 9rpm
    Hydraulic System
    Main Pump Pressure 213bar 245bar 245bar 245bar
    Main Pump Flow 33 L/min 33 L/min 33 L/min 60L/min
    Operating Scope
    Maximum Digging Height 3430mm 3430mm 3550mm 4920mm
    Maximum Dumping Height 2450mm 2450mm 2560mm 3520mm
    Maximum Digging Depth 2340mm 2350mm 2370mm 2880mm
    Maximum Digging Radius 3800mm 3970mm 4110mm 5200mm



    Much more details about CAT301.7CR mini multifunction excavator:

    1. A new generation of hydraulic control systems.
    A new generation of hydraulic control systems, large and small arms, buckets, swing speed can be adjusted to meet your pursuit of speed.

    High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator 1

    2. LCD HD display with integrated control interface.
    Easy-to-read machine information for integrated LCD HD displays for easy and easy multi-function control (hydraulic flow adjustable/continuous flow of the work unit).

    High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator 2

    3. Single handle walking mode and fixed speed cruise.
    Switch from traditional travel controls using joysticks and pedals to joystick controls at the touch of a button. Revolutionary liberation of the feet, flexible transition is easier.

    High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator 3

    4. Dozers float automatically.
    The dozer automatically floats to automatically adjust the height according to the ups and downs of the ground, freeing your hands.

    High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator 4

    5. A brand new cab.
    Leading sealed pressurized cab with air conditioning, dust-proof noise reduction, spacious and comfortable, giving you an all-weather operating experience, operators out of difficult working conditions.
    Luxury configuration: one-click boot, wireless key, Bluetooth music/phone.

    High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator 5

    High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator 6

    6. The cab and Carter patent locks can be lifted.
    Mini excavators are easier and easier to service. Standing on the ground through the service ⻔ make it easy to check daily checkpoints. Uniquely openable.
    The cab gives you more convenient maintenance space.

    High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator 7

    High quality CAT 301.7CR Steel Crawler Mini Type Multifunction Excavator 8
