Place of Origin: | China |
Brand Name: | Kaishan |
Certification: | CE |
Model Number: | AIR RECEIVER TANK |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | 1000USD/SET |
Packaging Details: | PLASTIC FILM PLAIN PACKAGING |
Delivery Time: | 10 WORKING DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 SET PRR QUARTER |
Name: | KAISHAN BRAND HIGH QUALITY AIR RECEIVER TANK | Pressure Of Air Receiver Tank: | 0.8MPa - 4.0MPa |
---|---|---|---|
Volume Of Air Receiver Tank: | 300 Liters - 40000 Liters | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
Warranty: | One Year | Condition: | New |
KAISHAN BRAND HIGH QUALITY AIR RECEIVER TANK
Air receiver tank introduction
Air receiver tank is the important supporting product of air compressor and also one of our basic products. All types of air receiver tanks with the volume V=0.33m³- 60m³, and working pressure Pw=0.8Mpa-6.4Mpa can be provided.
According to requirement of customers, air receiver tank with "ASME" specification and "U" steel seal can be produced.
Air receiver tank tecnical data:
Serial No. | Specifications | Design temperature T℃ | Overall height of vessel H | Vessel inside diameter DN | Air inlet | Air outlet | Supports | |||||||
Volume | Pressure | Height H1 | Caliber D1 | Interface d1 | Height H2 | Caliber D2 | Interface d2 | Hole diameter d2 | Distance D | |||||
1 | 0.3 | 0.8 | 150 | 1721 | 550 | 639 | 40 | Rp1½ | 1389 | 40 | Rp1½ | 20 | 400 | |
2 | 1 | 1721 | 639 | 1139 | ||||||||||
3 | 1.3 | 1722 | 661 | 1389 | ||||||||||
4 | 1.6 | 1722 | 661 | 1389 | ||||||||||
5 | 0.5 | 0.8 | 150 | 2177 | 600 | 655 | 40 | Rp1½ | 1655 | 40 | Rp1½ | 20 | 420 | |
6 | 1 | 2177 | 655 | 1655 | ||||||||||
7 | 1.3 | 2178 | 656 | 1655 | ||||||||||
8 | 1.6 | 2178 | 656 | 1655 | ||||||||||
9 | 0.6 | 0.8 | 150 | 1858 | 700 | 750 | 80 | Rp1½ | 1350 | 80 | Rp1½ | 25 | 490 | |
10 | 1 | 1858 | 750 | 1350 | ||||||||||
11 | 1.3 | 1866 | 752 | 1352 | ||||||||||
12 | 1.6 | 1866 | 752 | 1352 | ||||||||||
13 | 1 | 0.8 | 150 | 2400 | 800 | 731 | 80 | Flange DN80 | 1920 | 80 | Flange DN80 | 24 | 560 | |
14 | 1 | 2404 | 731 | 1920 | ||||||||||
15 | 1.3 | 2432 | 733 | 1970 | ||||||||||
16 | 1.6 | 2404 | 733 | 1970 | ||||||||||
17 | 1.5 | 0.8 | 150 | 2360 | 1000 | 763 | 80 | Flange DN80 | 1949 | 80 | Flange DN80 | 24 | 700 | |
18 | 1 | 2364 | 763 | 1951 | ||||||||||
19 | 1.3 | 2368 | 763 | 1951 | ||||||||||
20 | 1.6 | 2372 | 763 | 1951 | ||||||||||
21 | 2 | 0.8 | 150 | 2698 | 1100 | 806 | 80 | Flange DN80 | 2140 | 80 | Flange DN80 | 24 | 740 | |
22 | 1 | 2698 | 840 | 2140 | ||||||||||
23 | 1.3 | 2698 | 842 | 2142 | ||||||||||
24 | 1.6 | 2670 | 842 | 2142 | ||||||||||
25 | 2.5 | 0.8 | 150 | 2784 | 1200 | 851 | 100 | Flange DN100 | 2251 | 100 | Flange DN100 | 24 | 840 | |
26 | 1 | 2784 | 851 | 2251 | ||||||||||
27 | 1.3 | 2788 | 854 | 2255 | ||||||||||
28 | 1.6 | 2788 | 854 | 2255 | ||||||||||
29 | 3 | 0.8 | 150 | 2813 | 1300 | 856 | 100 | Flange DN100 | 2200 | 100 | Flange DN100 | 24 | 950 | |
30 | 1 | 2817 | 856 | 2200 | ||||||||||
31 | 1.3 | 2841 | 858 | 2535 | ||||||||||
32 | 1.6 | 2841 | 858 | 2535 | ||||||||||
33 | 4 | 0.8 | 150 | 3543 | 1300 | 930 | 100 | Flange DN100 | 2800 | 100 | Flange DN100 | 24 | 950 | |
34 | 1 | 3547 | 930 | 2800 | ||||||||||
35 | 1.3 | 3547 | 934 | 2804 | ||||||||||
36 | 1.6 | 3551 | 934 | 2804 | ||||||||||
37 | 5 | 0.8 | 150 | 3791 | 1400 | 864 | 100 | Flange DN100 | 3214 | 100 | Flange DN100 | 24 | 1050 | |
38 | 1 | 3795 | 864 | 3214 | ||||||||||
39 | 1.3 | 3795 | 868 | 3218 | ||||||||||
40 | 1.6 | 3805 | 868 | 3218 | ||||||||||
41 | 6 | 0.8 | 150 | 4515 | 1400 | 880 | 125 | Flange DN125 | 2930 | 125 | Flange DN125 | 24 | 1200 | |
42 | 1 | 4515 | 880 | 2930 | ||||||||||
43 | 1.3 | 4515 | 880 | 2934 | ||||||||||
44 | 1.6 | 4515 | 880 | 2934 | ||||||||||
45 | 8 | 0.8 | 150 | 4591 | 1600 | 991 | 150 | Flange DN150 | 3941 | 150 | Flange DN150 | 24 | 1200 | |
46 | 1 | 4591 | 991 | 3941 | ||||||||||
47 | 1.3 | 4599 | 995 | 3941 | ||||||||||
48 | 1.6 | 4599 | 995 | 3941 | ||||||||||
49 | 10 | 0.8 | 150 | 4560 | 1800 | 1025 | 150 | Flange DN150 | 3875 | 150 | Flange DN150 | 24 | 1200 | |
50 | 1 | 4560 | 1025 | 3875 | ||||||||||
51 | 1.3 | 4560 | 1025 | 3875 | ||||||||||
52 | 1.6 | 4560 | 1025 | 3875 | ||||||||||
53 | 12.5 | 0.8 | 150 | 4030 | 2200 | 1208 | 150 | Flange DN150 | 3050 | 150 | Flange DN150 | 24 | 560 | |
54 | 1 | 4060 | 1215 | 3060 | ||||||||||
55 | 1.3 | 4070 | 1220 | 3070 | ||||||||||
56 | 1.6 | 4080 | 1230 | 3080 | ||||||||||
57 | 15 | 0.8 | 150 | 4630 | 2200 | 1030 | 150 | Flange DN150 | 3780 | 150 | Flange DN150 | 30 | 1650 | |
58 | 1 | 4630 | 1030 | 3780 | ||||||||||
59 | 1.3 | 4634 | 1034 | 3784 | ||||||||||
60 | 1.6 | 4634 | 1034 | 3784 | ||||||||||
61 | 20 | 0.8 | 150 | 5284 | 2400 | 1375 | 200 | Flange DN200 | 4195 | 200 | Flange DN200 | 36 | 1800 | |
62 | 1 | 5295 | 1375 | 4197 | ||||||||||
63 | 1.3 | 5299 | 1379 | 4199 | ||||||||||
64 | 1.6 | 5299 | 1379 | 4201 | ||||||||||
65 | 25 | 0.8 | 150 | 6185 | 2400 | 1375 | 200 | Flange DN200 | 5095 | 200 | Flange DN200 | 36 | 1800 | |
66 | 1 | 6189 | 1377 | 5097 | ||||||||||
67 | 1.3 | 6193 | 1379 | 5099 | ||||||||||
68 | 1.6 | 6197 | 1381 | 5101 | ||||||||||
69 | 30 | 0.8 | 150 | 7145 | 2500 | 1400 | 200 | Flange DN200 | 6030 | 200 | Flange DN200 | 36 | 1875 | |
70 | 1 | 7149 | 1402 | 6032 | ||||||||||
71 | 1.3 | 7153 | 1404 | 6034 | ||||||||||
72 | 1.6 | 7157 | 1406 | 6036 | ||||||||||
73 | 40 | 0.8 | 150 | 7348 | 2800 | 1298 | 200 | Flange DN200 | 6348 | 200 | Flange DN200 | 36 | 2100 | |
74 | 1 | 7348 | 1298 | 6348 |
More details about air receiver tank :

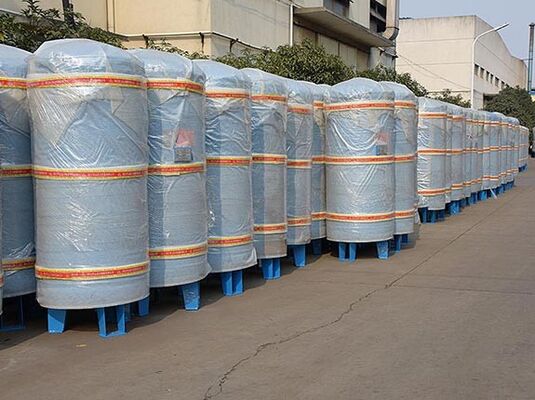

Packing and loading:
About Kaishan Group:
Kaishan group is an enterprise with over 60 years history in China. Kaishan group has 18 subordinate companies with over 4100 employees. It covers an area of over 430,000 m2 with the total building complex area over 230,000 m2 and the total assets of the group amounts to over 3.5 billion.
Kaishan group is the national largest manufacture of drilling equipment, the largest in Asia and the third largest in the world manufacture of air compressors. Kaishan drilling equipment and air compressor have export to over 30 different nations and regions such as United States, Germany, Japan, South Korea, Russia, African and Latin American countries and so on.
