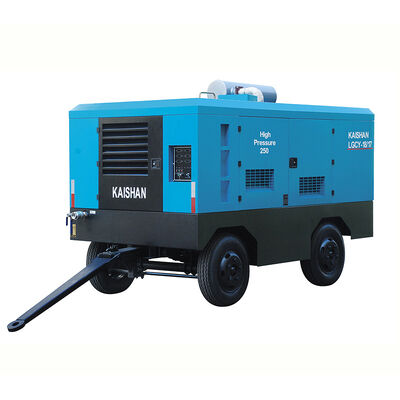

Kaishan LGCY-18/17 diesel engine moveable low pressure screw air compressor

Kaishan LGCY-18/17 diesel engine moveable low pressure screw air compressor

    • Kaishan LGCY-18/17 diesel engine moveable low pressure screw air compressor
    • Kaishan LGCY-18/17 diesel engine moveable low pressure screw air compressor
    • Kaishan LGCY-18/17 diesel engine moveable low pressure screw air compressor
    • Kaishan LGCY-18/17 diesel engine moveable low pressure screw air compressor
  • Kaishan LGCY-18/17 diesel engine moveable low pressure screw air compressor

    Product Details:

    Place of Origin: China
    Brand Name: Kaishan
    Certification: CE
    Model Number: LGCY-18/17

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 10000-50000USD/SET
    Packaging Details: PLASTIC FILM PLAIN PACKAGING
    Delivery Time: 10 WORKING DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 50 SET PRR QUARTER
    Contact Now
    Detailed Product Description
    Name: Kaishan LGCY-18/17 Diesel Engine Moveable Low Pressure Screw Air Compressor Diesel Engine Brand: YUCHAI
    Type: Screw Configuration: Portable
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support Warranty: One Year

    Kaishan LGCY-18/17 diesel engine moveable low pressure screw air compressor

    A: Machine introduction of screw air compressor

    Diesel engine portable screw air compressors are wildly used in railroad construction, building construction, shipyard, mining and most of the outdoor operation. Through the cutting edge production technology and intelligent engineering, Kaishan compressor offers the best performance portable screw compressor.



    B: Machine features of screw air compressor
    LGCY series are equipped with high efficient air end and well known diesel engine - Cummins or Yuchai. The lowest fuel consumption diesel engine to provide far distance outdoor operation. The unit comes with several protection alarm which provides maximum protection to the system. The advanced producing technology gives this series a low operating sound environment and a less vibration design.The whole unit is reliable and easy to operate and maintain.



    C: Main technical data of screw air compressor

    Model Working pressure
    (Mpa)
    Capacity
    (m3/min)
    Diesel engine brand Weight
    (kg)
    Dimension
    (mm)
    LGCY-6/7X 0.7 6 XICHAI 1400 3240×1760×1850
    LGCY-7.5/7X 0.7 7.5 XICHAI 1400 3240×1760×1850
    LGCY-9/7 0.7 9 YUCHAI 1550 2175×1760×1785
    LGCY-12/10 1 12 YUCHAI 1880 3300×1880×2100
    LGCY-10/13 1.3 10 YUCHAI 1880 3300×1880×2100
    LGCY-15/10 1 15 YUCHAI 2400 3000×1520×2200
    LGCY-18/17 1.7 18 YUCHAI 3400 3980×1800×2450
    LGCY-18/17K 1.7 18 CIUMMINS 3400 3980×1800×2450
    LGCY-22/8K 0.8 22 CIUMMINS 4000 3764×1800×2213
    LGCY-22/14 1.4 22 YUCHAI 4500 4580×1950×2600
    LGCY-22/14K 1.4 22 CIUMMINS 4500 4580×1950×2600
    LGCY-22/18 1.8 22 YUCHAI 4500 4550×1950×2600
    LGCY-22/18K 1.8 22 CIUMMINS 4500 4550×1950×2600
    LGCY-27/10 1 27 YUCHAI 5000 4600×1950×2600
    LGCY-27/10K 1 27 CIUMMINS 5000 4600×1950×2600
    LGCY-32/10 1 32 YUCHAI 5000 4600×1950×2600
    LGCY-32/10K 1 32 CIUMMINS 5000 4600×1950×2600



    D: More details of screw air compressor

    air compressor details.jpg




    E: Packing and shipping about screw air compressor
    Packaging: General export packing or customized packaging according to your requirement.
    Shipping: Professional goods shipping forwarders.
    Delivery Time: 7 working days after deposit.

    Packing and shipping.jpg



    F: After sales service:
    1.We can provide all-round technical guidance ff there is any problem about our machine;
    2.7*24 hours multi-language professional after-sales service group
    3.Construction solutions will be provided for different geological conditions.

    4.All the accessories of that kind of machine can be provided for a long time.



    G: About Kaishan Group:
    Kaishan group is an enterprise with over 60 years history in China. Kaishan group has 18 subordinate companies with over 4100 employees. It covers an area of over 43000m2 with the total building complex area over 230000m2 and the total assets of the group amounts to over 3.5 billion.
    Kaishan group is the national largest manufacture of drilling equipment, the largest in Asia and the third largest in the world manufacture of air compressor. Kaishan drilling equipment and air compressor have export to over 30 different nations and regions such as United States, Germany, Japan, Russina, African and so on

    Factory 01.png
