| Place of Origin: | China |
| Brand Name: | Kaishan |
| Certification: | CE |
| Model Number: | LGCY series |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 15000USD/SET |
| Packaging Details: | PLASTIC FILM PLAIN PACKAGING |
| Delivery Time: | 10 WORKING DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 SET PRR QUARTER |
| Name: | KAISHAN BRAND LGCY SERIES SINGLE-STAGE DIESEL PORTABLE SCREW AIR COMPRESSOR | Diesel Engine Brand: | Deutz; Cummins; YUCHAI |
|---|---|---|---|
| Working Pressure: | 0.7Mpa / 1.0MPa / 1.3MPa / 1.45MPa / 1.7MPa | Free Air Deliver: | 2.5 M3/min - 32 M3/min |
| Type: | Screw | Configuration: | Portable |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Warranty: | One Year |

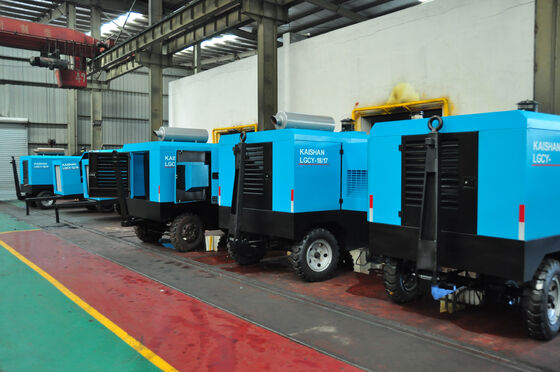

KAISHAN BRAND LGCY SERIES SINGLE-STAGE DIESEL PORTABLE SCREW AIR COMPRESSOR
LGCY series single-stage diesel portable screw air compressor introduction
KAISHAN diesel portable screw air compressor is widely applied in the industries, such as, road, railway, mine, water conservancy, shipbuilding, urban construction, energy and war industry, etc.
Kaishan-Brand diesel portable screw air compressor is efficient and reliable, with complete varieties. Its power range is 37 - 300kW; discharge quantity covers 30m3/min and the discharge pressure is up to 2.2MPa at maximum.
LGCY series single-stage diesel portable screw air compressor Main tecnical data:
| Model | Capacity (F.A.D) | Working Pressure |
Diesel Engine | Weight | Size | Remark | ||
| m³/min | cfm | Mpa | Psig | kgs | (L*W*H)mm | |||
| LGCY-6/7 | 6 | 212 | 0.7 | 102 | YCD4B22-95,70kw/95HP | 1400 | 3750*1920*1700 | 2 wheels |
| LGCY-7.5/7 | 7.5 | 265 | 0.7 | 102 | YC4D80-K11,58kw/80HP | 1850 | 3900*1920*1700 | 2 wheels |
| LGCY-9/7 | 9 | 318 | 0.7 | 102 | YC4D95Z-K20,70kw/95HP | 1850 | 3900*1920*1700 | 2 wheels |
| LGCY-10/13 | 10 | 353 | 1.3 | 189 | YC6B150Z-K20,110kw/150HP | 2380 | 4080*1980*2350 | 2 wheels |
| LGCY-12/10 | 12 | 424 | 1 | 145 | YC6B150Z-K20,110kw/150HP | 2380 | 4080*1980*2350 | 2 wheels |
| LGCY-13/17 | 13 | 459 | 1.7 | 247 | 6CTA8.3-C215,158kw/215HP | 2380 | 3780*1980*2350 | 4 wheels |
| LGCY-15/10 | 15 | 530 | 1 | 145 | 6BT180,132kw/180HP | 2750 | 3450*1520*2220 | 4 wheels |
| LGCY-17/7 | 17 | 600 | 0.7 | 102 | 6BT5.9-C180,132kw/180HP | 3050 | 3380*1640*2350 | 4 wheels |
| LGCY-18/17 | 18 | 636 | 1.7 | 247 | 6CTA8.3-C260,192kw/260HP | 3700 | 3980*1800*2450 | 4 wheels |
| LGCY-22/8 | 22 | 777 | 0.8 | 116 | 6CTA8.3-C260,192kw/260HP | 4000 | 4580*1950*2600 | 4 wheels |
| LGCY-22/14 | 22 | 777 | 1.4 | 203 | YC6M340-20,250kw/340HP | 4500 | 4580*1950*2600 | 4 wheels |
| LGCY-22/14K | 22 | 777 | 1.4 | 203 | 6CTA8.9-C325,239kw/325HP | 4500 | 4580*1950*2600 | 4 wheels |
| LGCY-22/18 | 22 | 777 | 1.8 | 261 | YC6M340-20,250kw/340HP | 4500 | 4580*1950*2600 | 4 wheels |
| LGCY-22/18K | 22 | 777 | 1.8 | 261 | 6CTA8.9-C325,239kw/325HP | 4500 | 4580*1950*2600 | 4 wheels |
| LGCY-27/10 | 27 | 954 | 1 | 145 | YC6M340-20,250kw/340HP | 5000 | 4600*1950*2850 | 4 wheels |
| LGCY-32/10 | 32 | 1130 | 1 | 145 | YC6M390-20,287kw/390HP | 5000 | 4600*1950*2850 | 4 wheels |
| LGCY-32/10 | 32 | 1130 | 1 | 145 | 6LTA8.9-C360,265kw/360HP | 5000 | 4600*1950*2850 | 4 wheels |
More details about LGCY series single-stage diesel portable portable screw air compressor :
Packing and loading:
About Kaishan Group:
Kaishan group is an enterprise with over 60 years history in China. Kaishan group has 18 subordinate companies with over 4100 employees. It covers an area of over 430,000 m2 with the total building complex area over 230,000 m2 and the total assets of the group amounts to over 3.5 billion.
Kaishan group is the national largest manufacture of drilling equipment, the largest in Asia and the third largest in the world manufacture of air compressors. Kaishan drilling equipment and air compressor have export to over 30 different nations and regions such as United States, Germany, Japan, South Korea, Russia, African and Latin American countries and so on.
