|Minimum Order Quantity:||1 SET|
|Packaging Details:||PLASTIC FILM PLAIN PACKAGING|
|Delivery Time:||10 WORKING DAYS|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 SET PRR QUARTER|
|Drilling Hold Diameter:||140-350m||Drilling Depth:||400m|
|Once-time Advance Length:||6.6m||Main Motor Power:||95kw|
|Using Air Pressure:||1.7-3.5MPA||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Usage:||Water Well||Power Type:||Diesel|
|Product Name:||Water Well Drilling Rig|
FACTORY DIRECT SALE 180 METERS LONG LIFE DTH DRILLING RIG FOR WATER WELL
Water well drilling rig introduction
DK Series Well Drilling Rig is a light, efficient and versatile drilling equipment that is mainly suitable for drilling wells, agricultural irrigation wells and other uses, especially for water extraction in mountainous and rock formations engineering.
This series of drilling rigs using new hydraulic technology, supporting high torque hydraulic motor swing and large cylinder diameter hydraulic cylinder propulsion.
Water well drilling rig main technical data:
|Drilling hold diameter(M)||100-219||230-219||130-254||140-325||140-325||140-325||140-350||140-350||140-500|
|Drilling depth (M)||130||150||180||200||260||300||400||600||800|
|Once-time advance length(M)||1.8||3.4||3.4||3.4||3.4||6.6||6.6||6.6||6.6|
|Walking speed (km/h)||0.8||2||2.5||2.5||2.5||2||2.5||2.5||2.5|
|Main motor power (kw)||23||38-55||42-65||65||75.8||85||95||115||140|
|Using air pressure (mpa)||1.45-2.5||1.45-2.5||1.7-2.5||1.7-3.0||1.7-3.0||1.7-3.3||1.7-3.5||1.7-3.5||1.7-3.5|
|Air consumption (m3/min)||15-27||15-27||15-27||17-35||17-35||17-35||17-35||17-35||17-35|
|Drill pipe diameter (mm)||76/89/102|
|Drill pipe length (m)||1.5/2/3|
|Rig lifting force(N)||5||8||8||12||15||20||24||30||35|
|Swing speed (rpm)||38-55||48-70||50-70||40-115||55-115||45-115||45-115||45-115|
|Swing torque (N.M)||2600-4000||4000-5000||4200-5600||500-6500||7000-9000||7200-9500||8500-10000||8500-10500||8600-111500|

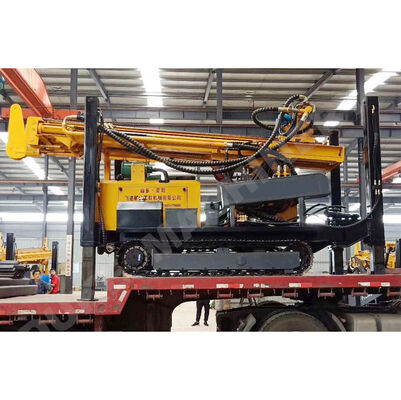

Water well driling rig machine pictures
Why choose us:
1.All kinds of agreement can be signed with your company if you have any afraid for our products;
2.Quality is our culture ;
3.With us your money in safe, your business in safe ;
4.we think our product will give you an edge over your competitors ;
5.7*24 hours multi-language professional after-sales service group .
We are located in Zhengzhou City, Henan Province At present, we mainly has two business divisions, drilling rig production and sales division and brand excavator marketing division.
About drilling rig production and sales Division
It is mainly produces and sells a variety of well drilling rigs, sub-hole drilling rigs, drilling vehicles and drilling accessories. The company's existing products include 6 series of more than 50 kinds, leading products are: KQZ-100D, KQZ-150D, KQZ-200D submersible drilling rig, FY130, FY150, FY150, FY180, FY200, FY260, FY400, FY600, FY800 and other models of the full-hydraulic driller series, heel tube series, as well as high school low-pressure engineering drill car series.
About brand excavator Marketing Division
We have successfully established strategic partnership with Caterpillar, Komatsu, Levo and Sany Group, and become the general agent of excavator sales of this brand in Henan province China. Through us, you will easily buy equipment of high quality and low price.
Hope we can build good cooperation with you and your company!!!
Contact Person: Mr. Alex
