China hot sale diesel engine driven HBTS60R big aggregate concrete pump

China hot sale diesel engine driven HBTS60R big aggregate concrete pump

    • China hot sale diesel engine driven HBTS60R big aggregate concrete pump
    • China hot sale diesel engine driven HBTS60R big aggregate concrete pump
    • China hot sale diesel engine driven HBTS60R big aggregate concrete pump
    • China hot sale diesel engine driven HBTS60R big aggregate concrete pump
  • China hot sale diesel engine driven HBTS60R big aggregate concrete pump

    Product Details:

    Place of Origin: China
    Brand Name: Duke
    Certification: CE
    Model Number: HBTS60R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 10000USD/SET-100000USD/SET
    Packaging Details: PLASTIC FILM PLAIN PACKAGING
    Delivery Time: 10 WORKING DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 50 SET PRR QUARTER
    Contact Now
    Detailed Product Description
    Application: Transport Mortar Or Concrete Name 01: Concrete Pump
    Name 02: Mortar Concrete Pump Warranty: 1 Year
    Driving Type: Diesel

    HBTS60R Big Aggregate Concrete Pump


    Concrete pump machine introduction
    HBTS/R series concrete pumps can transport concrete with a particle size of 4cm or more, with displacements ranging from 40m3/h to 100m3/h, suitable for the transportation of concrete or mortar for civil construction, transportation, railways, water conservancy, power and national defense projects;
    HBTS-R series is a diesel engine-powered concrete pump for remote power-poor areas;


    Concrete pump machine technical data:

    Item HBTS4012R HBTS5012R HBTS6012R HBTS8012R
    Max.theory concrete output(m/3h) 40 50 60 80
    Max.concrete pumping pressure(MPA) 12 12 12 12
    Distribution valve type S S S S
    Max.transportation distance(vertical) 90 100 120 150
    Max.transportation distance(horizontal) 300 400 400 500
    Engine type diesel diesel diesel diesel
    Power (kw)/Weichai 82 82 82 129
    Hopper capacity (L) 680 680 700 680
    Hopper feeding height(mm) 1400 1400 1300 1400
    Max. aggregate diameter(mm) 40 40 40 40
    Overall dimension (mm) 4820*1750*1770 4820*1750*1770 4820*1750*1900 6000*2000*2200
    Machine weight(kg) 3900 4000 5000 5800

    China hot sale diesel engine driven HBTS60R big aggregate concrete pump 0

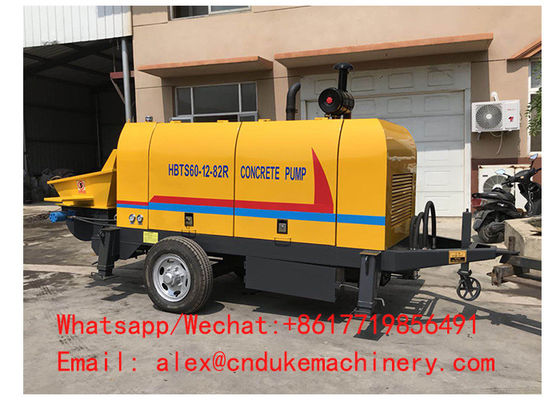

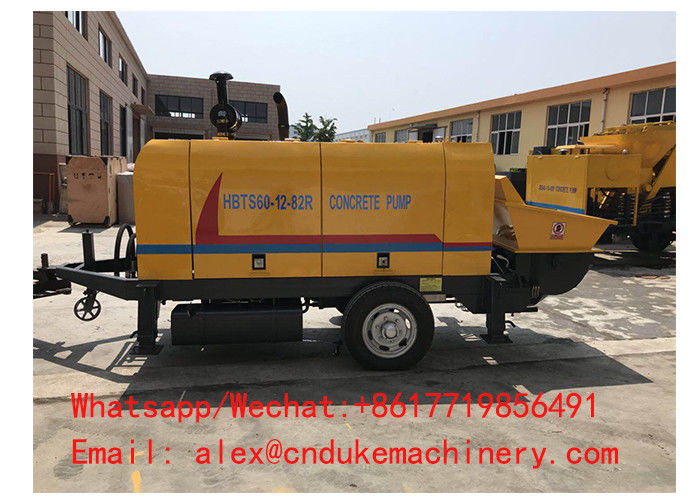

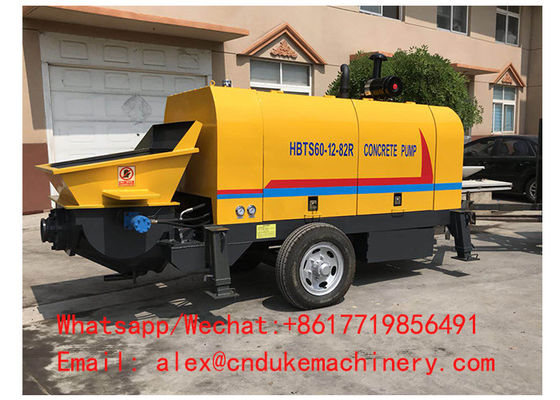

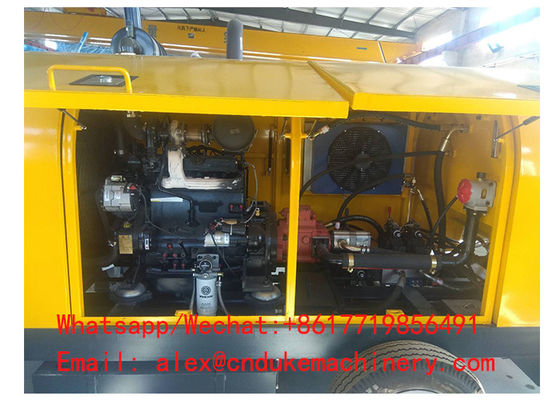

    60 Diesel driving concrete pump machine pictures:
    China hot sale diesel engine driven HBTS60R big aggregate concrete pump 1
    China hot sale diesel engine driven HBTS60R big aggregate concrete pump 2
    China hot sale diesel engine driven HBTS60R big aggregate concrete pump 3
    China hot sale diesel engine driven HBTS60R big aggregate concrete pump 4

    Company introduction:
    We are located in Zhengzhou City, Henan Province, the Central area of China with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
    China hot sale diesel engine driven HBTS60R big aggregate concrete pump 5
    China hot sale diesel engine driven HBTS60R big aggregate concrete pump 6
    China hot sale diesel engine driven HBTS60R big aggregate concrete pump 7

    Why choose us:
    1.All kinds of agreement can be signed with your company if you have any afraid for our products;
    2.Quality is our culture ;
    3.With us your money in safe, your business in safe ;
    4.we think our product will give you an edge over your competitors ;
    5.7*24 hours multi-language professional after-sales service group .
