Place of Origin: | China |
Brand Name: | Duke |
Certification: | CE |
Model Number: | BS300R |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | 10000USD/SET-100000USD/SET |
Packaging Details: | PLASTIC FILM PLAIN PACKAGING |
Delivery Time: | 10 WORKING DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 SET PRR QUARTER |
Application: | Transport Mortar And Fine Stone Concrete | Name 01: | Fine Stone Concrete Pump |
---|---|---|---|
Name 02: | Mortar Concrete Pump | Warranty: | 1 Year |
Driving Type: | Diesel |
Mortar or fine stone concrete pump
Concrete pump machine introduction
BS series mortar fine stone concrete pump is our company for high-rise residential underfloor heating design and development of a small S-pipe valve concrete pump, can transport mortar and fine stone concrete, it has high export pressure, transmission distance, the distribution of small diameter, light, can enter the characteristics of cloth, has been widely used in ground heating construction operations;
The BS-R is a diesel-powered fine-stone concrete pump, an extension of the BS series, mainly suitable for remote, power-free areas.
Concrete pump machine technical data:
Item | BS25 | BS30D | BS20R | BS30R |
Max.theory concrete output(m/3h) | 25/14 | 32/18 | 22 | 30 |
Max.concrete pumping pressuere(MPA) | 10/5.3 | 9.1/4.8 | 9.1 | 10.3 |
Distribution valve type | S | S | S | S |
Max.transportation distance(vertical) | 150m | 130m | 130m | 150m |
Max.transportation distance(horizontal) | 500m | 400m | 400m | 500m |
Engine type | electromotor | electromotor | diesel | diesel |
Powe (kw) | 25 | 37 | 56 | 62 |
Hopper capacity (m3) | 0.4 | 0.4 | 0.4 | 0.4 |
Hopper feeding height(mm) | 1200 | 1200 | 1400 | 1400 |
Max. aggregate diameter(mm) | 25 | 25 | 25 | 25 |
Overall dimension (mm) | 3500*1450*1600 | 3500*1450*1600 | 4300*1750*1900 | 4300*1750*1900 |
Machine weight(kg) | 1650 | 1750 | 1900 | 2050 |

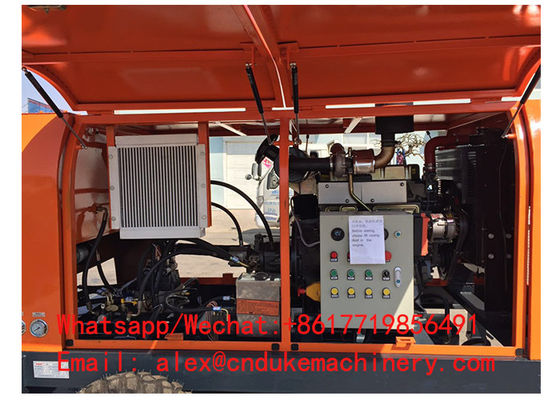

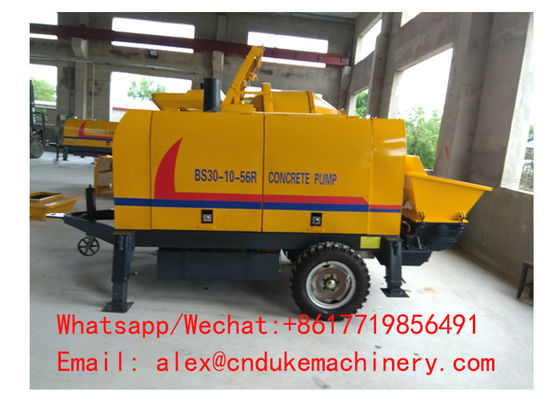

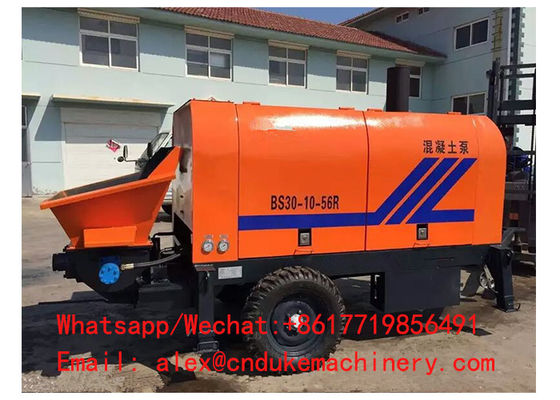

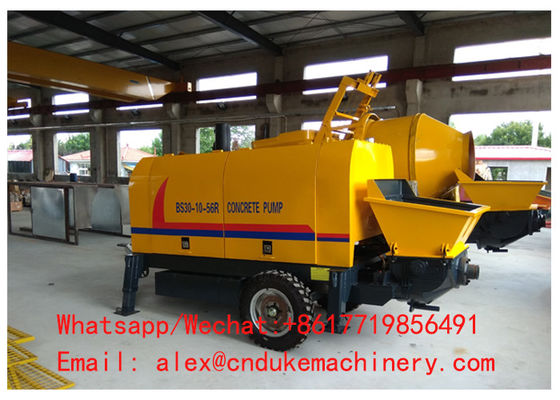

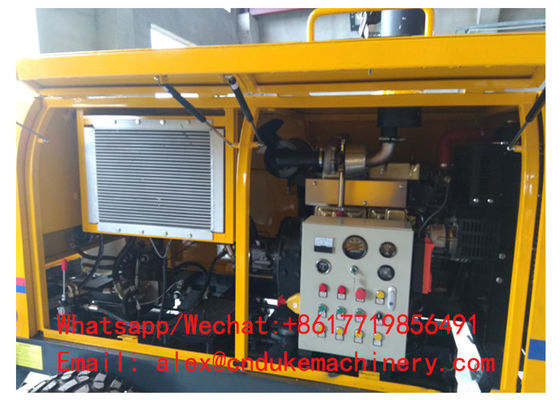

Diesel driving concrete pump machine pictures:
Company introduction:
We are located in Zhengzhou City, Henan Province, the Central area of China with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Why choose us:
1.All kinds of agreement can be signed with your company if you have any afraid for our products;
2.Quality is our culture ;
3.With us your money in safe, your business in safe ;
4.we think our product will give you an edge over your competitors ;
5.7*24 hours multi-language professional after-sales service group .
