|Place of Origin:||China|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||PLASTIC FILM PLAIN PACKAGING|
|Delivery Time:||10 WORKING DAYS|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 SET PRR QUARTER|
|Name:||PILING FOUNDATION CONSTRUCTION MACHINE OF LD515 ROTARY DRILLING RIG||Max.drilling Diameter:||1800mm|
|Max.drilling Depth:||15m||Motor Power:||113kw|
|Machine Weight:||22ton||Warranty:||One Year|

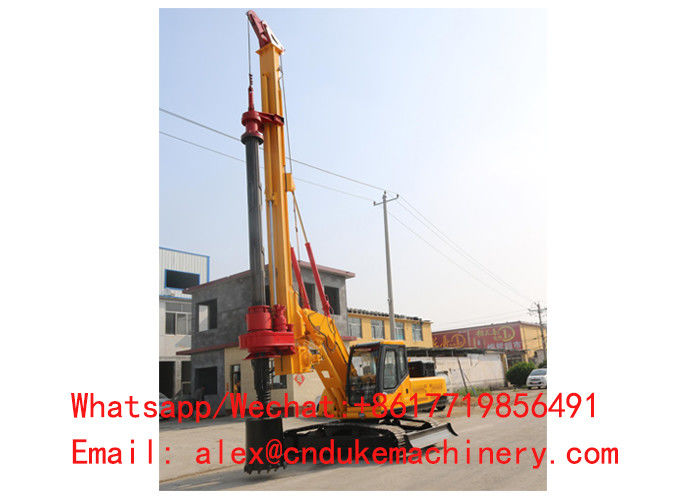

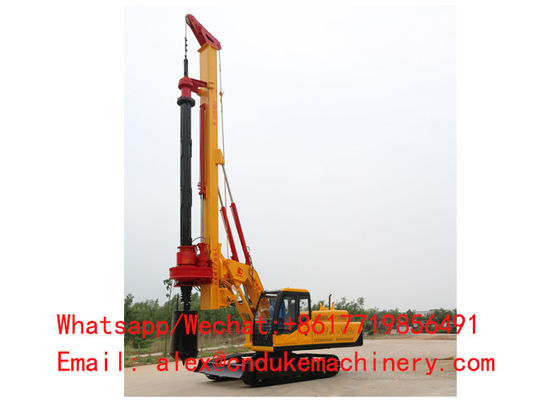

PILING FOUNDATION CONSTRUCTION MACHINE OF LD515 ROTARY DRILLING RIG
Rotary drilling machine introduction
LD-515 machine lock rod rotary drilling rig using hydraulic track-type telescopic chassis, self-landing collapsible mast, telescopic drill pipe and many other technical applications, is a suitable for building infrastructure work in the construction machinery. Mainly suitable for sand, clay, powder soil and other geological construction, in perfusion piles, continuous walls, basic reinforcement and other foundation construction has been widely used.
Rotary drilling machine main tecnical data:
|Max. Drilling Diameter||mm||1800||1600||1500|
|Max. Drilling Depth||m||15||20||25|
|Engine||Model||Weifang 6105||Weifang 6105||Cummins C205|
|Rated rotation speed||rpm||2200||2200||2200|
|Rotary Drive||Max. output torque||kN .m||100||100||100|
|Pull-Down Cylinder||Max.pull-down piston push||kN||100||100||100|
|Max.pull-down piston pull||kN||100||100||100|
|Max.pull-down piston stroke||mm||2000||3000||2000|
|Main Winch||Max.pulling force||kN||100||100||100|
|Max. single-rope speed||m/min||70||70||70|
|Diameter of steel wire rope||mm||24||24||28|
|Auxiliary Winch||Max.pulling force||kN||60||60||60|
|Max. single-rope speed||m/min||54||54||54|
|Diameter of steel wire rope||mm||16||16||16|
|Traveling||Max. traveling speed||km/h||2.6||2.6||2.6|
|Dimension||L × W × H||mm||8600*2300*3400||9610*2600*3500||10100*2600*3500|
Rotary drilling machine features:
1. The use of folding mast structure, simple and refined structure, good durability, good stability of the machine, cost savings and maintenance more convenient.
2. The use of upper guide frame structure, to ensure the verticality of the drill pipe and the ground, construction is more convenient, improve construction efficiency, increase safety.
3. Power head original patented structure design reasonable, reliable lubrication, strong power, cost savings, and not easy to damage, easy to repair.
4. Main roll Yang: the use of the original imported hydraulic motor, responsive, can use free decentralization, lifting speed can reach 82m/min, greatly improving construction efficiency. The main roll is placed in front of the right side of the operator, so that the operator can observe the working conditions of the main roll at any time, to avoid other factors caused by the phenomenon of rope disorder.
Why choose us:
1.All kinds of agreement can be signed with your company if you have any afraid for our products;
2.Quality is our culture ;
3.With us your money in safe, your business in safe ;
4.we think our product will give you an edge over your competitors ;
5.7*24 hours multi-language professional after-sales service group .
We are located in Zhengzhou City, Henan Province At present, we mainly has two business divisions, drilling rig production and sales division and brand excavator marketing division.
About drilling rig production and sales Division
It is mainly produces and sells a variety of well drilling rigs, sub-hole drilling rigs, drilling vehicles and drilling accessories. The company's existing products include 6 series of more than 50 kinds, leading products are: KQZ-100D, KQZ-150D, KQZ-200D submersible drilling rig, FY130, FY150, FY150, FY180, FY200, FY260, FY400, FY600, FY800 and other models of the full-hydraulic driller series, heel tube series, as well as high school low-pressure engineering drill car series.
About brand excavator Marketing Division
We have successfully established strategic partnership with Caterpillar, Komatsu, Levo and Sany Group, and become the general agent of excavator sales of this brand in Henan province China. Through us, you will easily buy equipment of high quality and low price.
Hope we can build good cooperation with you and your company!!!
