    Product Details:

    Place of Origin: China
    Brand Name: Duke
    Certification: CE
    Model Number: LD535

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 30000-100000USD/SET
    Packaging Details: PLASTIC FILM PLAIN PACKAGING
    Delivery Time: 10 WORKING DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 50 SET PRR QUARTER
    Contact Now
    Detailed Product Description
    Name: HYDRAULIC CRAWLER TYPE DRILLING RIG ROTARY PILE RIGS WITH CHEAP PRICE Max.drilling Diameter: 1600mm
    Max.drilling Depth: 35m Motor Power: 154kw
    Machine Weight: 33ton Warranty: One Year
    Max.travling Speed: 2.6km/h Type: Rotary Drilling Rig

    HYDRAULIC CRAWLER TYPE DRILLING RIG ROTARY PILE RIGS WITH CHEAP PRICE



    Rotary drilling machine introduction

    LD535 machine lock rod rotary drilling rig using hydraulic track-type telescopic chassis, self-landing collapsible mast, telescopic drill pipe and many other technical applications, is a suitable for building infrastructure work in the construction machinery. Mainly suitable for sand, clay, powder soil and other geological construction, in perfusion piles, continuous walls, basic reinforcement and other foundation construction has been widely used.



    Rotary drilling machine main tecnical data:

    Item Unit Data
    Model   LD530 LD535 LD5120
    Max. Drilling Diameter mm 1500 1600 1500
    Max. Drilling Depth m 30 35 40
    Engine Model   Cummins C210

    WP6G240E330

    WP6G240E330
    Rated Power kW 154 154 176
    Rated rotation speed rpm 2400 2200 2200
    Rotary Drive Max. output torque kN .m 100 100 120
    Rotary speed r/min 17-40 17-40 8-35
    Pull-Down Cylinder Max.pull-down piston push kN 110 100 100
    Max.pull-down piston pull kN 100 100 100
    Max.pull-down piston stroke mm 2000 2000 4000
    Main Winch Max.pulling force kN 100 100 100
    Max. single-rope speed m/min 70 70 70
    Diameter of steel wire rope mm 28 24 26
    Auxiliary Winch Max.pulling force kN 60 60 60
    Max. single-rope speed m/min 54 54 54
    Diameter of steel wire rope mm 16 16 16
    Traveling Max. traveling speed km/h 2.6 2.6 2.6
    Min.ground claerance mm 340 340 340
    Approach angle ° 21 21 21
    Departure angle ° 18 18 18
    Max.grade ability % 30 30 30
    Weight   t 28 33 43
    Dimension L × W × H mm 11000*2600*3400 10850*3000*3500 14500*2800*3600



    Rotary drilling machine features:

    1. Special hydraulic track chassis, large diameter swing support, with strong stability and transport convenience;
    2. The whole machine matching reasonable, key components using stable, reliable, high-performance international well-known brands.
    3. Full hydraulic drive structure, low center of gravity, stable performance, simpler and more flexible operation.
    4. Power head for lightweight design, strong torque, high construction efficiency, dual motor no-stage variable speed.
    5. The use of upper guide frame structure, to ensure the verticality of the drill pipe and the ground, construction is more convenient, improve construction efficiency, increase safety.
    6. Hydraulic circuit system using advanced concepts, specially designed for rotary drilling rig optimization system, with swing stability, hose lift speed and so on.

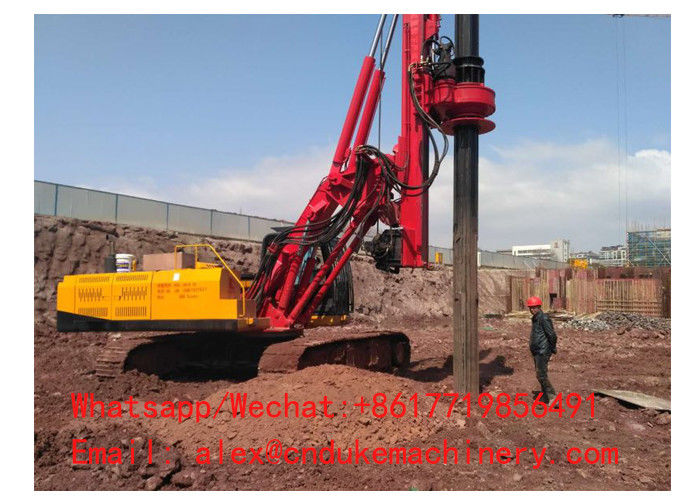

    HYDRAULIC crawler type DRILLING RIG ROTARY PILE RIGS WITH CHEAP PRICE 0

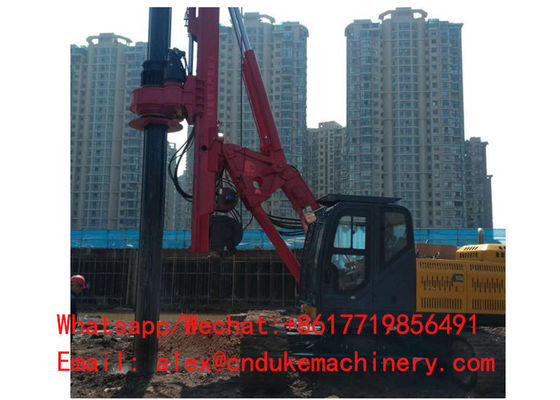

    HYDRAULIC crawler type DRILLING RIG ROTARY PILE RIGS WITH CHEAP PRICE 1



    Why choose us:
    1.All kinds of agreement can be signed with your company if you have any afraid for our products;
    2.Quality is our culture ;
    3.With us your money in safe, your business in safe ;
    4.we think our product will give you an edge over your competitors ;
    5.7*24 hours multi-language professional after-sales service group .



    Company introduction:

    We are located in Zhengzhou City, Henan Province At present, we mainly has two business divisions, drilling rig production and sales division and brand excavator marketing division.
    About drilling rig production and sales Division
    It is mainly produces and sells a variety of well drilling rigs, sub-hole drilling rigs, drilling vehicles and drilling accessories. The company's existing products include 6 series of more than 50 kinds, leading products are: KQZ-100D, KQZ-150D, KQZ-200D submersible drilling rig, FY130, FY150, FY150, FY180, FY200, FY260, FY400, FY600, FY800 and other models of the full-hydraulic driller series, heel tube series, as well as high school low-pressure engineering drill car series.
    About brand excavator Marketing Division
    We have successfully established strategic partnership with Caterpillar, Komatsu, Levo and Sany Group, and become the general agent of excavator sales of this brand in Henan province China. Through us, you will easily buy equipment of high quality and low price.
    Hope we can build good cooperation with you and your company!!!

    HYDRAULIC crawler type DRILLING RIG ROTARY PILE RIGS WITH CHEAP PRICE 2

    HYDRAULIC crawler type DRILLING RIG ROTARY PILE RIGS WITH CHEAP PRICE 3
