|Place of Origin:||China|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||PLASTIC FILM PLAIN PACKAGING|
|Delivery Time:||10 WORKING DAYS|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 SET PRR QUARTER|
|Name:||ROTARY DRILLING MACHINE PILE MACHINERY DRILLING DEPTH 35M ROTARY DRILLING RIG||Max.drilling Diameter:||1600mm|
|Max.drilling Depth:||3500mm||Motor Power:||154kw|
|Machine Weight:||33ton||Warranty:||One Year|
|Max.travling Speed:||2.6km/h||Type:||Rotary Drilling Rig|
ROTARY DRILLING MACHINE PILE MACHINERY DRILLING DEPTH 35M ROTARY DRILLING RIG
Rotary drilling machine introduction

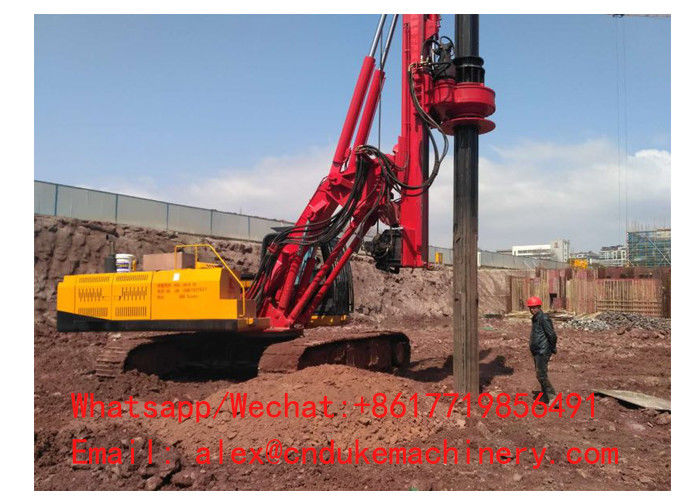

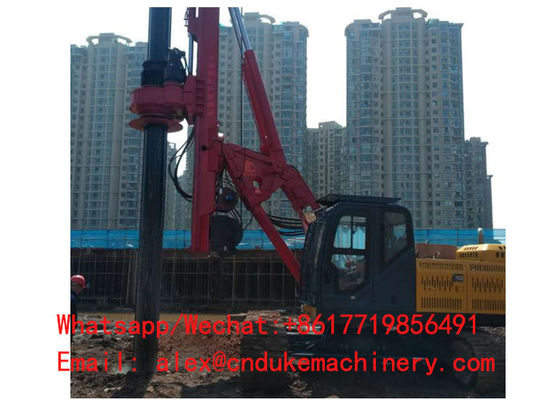

LD535 machine lock rod rotary drilling rig using hydraulic track-type telescopic chassis, self-landing collapsible mast, telescopic drill pipe and many other technical applications, is a suitable for building infrastructure work in the construction machinery. Mainly suitable for sand, clay, powder soil and other geological construction, in perfusion piles, continuous walls, basic reinforcement and other foundation construction has been widely used.
Rotary drilling machine main tecnical data:
|Max. Drilling Diameter||mm||1500||1600||1500|
|Max. Drilling Depth||m||30||35||40|
|Rated rotation speed||rpm||2400||2200||2200|
|Rotary Drive||Max. output torque||kN .m||100||100||120|
|Pull-Down Cylinder||Max.pull-down piston push||kN||110||100||100|
|Max.pull-down piston pull||kN||100||100||100|
|Max.pull-down piston stroke||mm||2000||2000||4000|
|Main Winch||Max.pulling force||kN||100||100||100|
|Max. single-rope speed||m/min||70||70||70|
|Diameter of steel wire rope||mm||28||24||26|
|Auxiliary Winch||Max.pulling force||kN||60||60||60|
|Max. single-rope speed||m/min||54||54||54|
|Diameter of steel wire rope||mm||16||16||16|
|Traveling||Max. traveling speed||km/h||2.6||2.6||2.6|
|Dimension||L × W × H||mm||11000*2600*3400||10850*3000*3500||14500*2800*3600|
Rotary drilling machine features:
1. Special hydraulic track chassis, large diameter swing support, with strong stability and transport convenience;
2. The whole machine matching reasonable, key components using stable, reliable, high-performance international well-known brands.
3. Full hydraulic drive structure, low center of gravity, stable performance, simpler and more flexible operation.
4. Power head for lightweight design, strong torque, high construction efficiency, dual motor no-stage variable speed.
5. The use of upper guide frame structure, to ensure the verticality of the drill pipe and the ground, construction is more convenient, improve construction efficiency, increase safety.
6. Hydraulic circuit system using advanced concepts, specially designed for rotary drilling rig optimization system, with swing stability, hose lift speed and so on.
Why choose us:
1.All kinds of agreement can be signed with your company if you have any afraid for our products;
2.Quality is our culture ;
3.With us your money in safe, your business in safe ;
4.we think our product will give you an edge over your competitors ;
5.7*24 hours multi-language professional after-sales service group .
We are located in Zhengzhou City, Henan Province At present, we mainly has two business divisions, drilling rig production and sales division and brand excavator marketing division.
About drilling rig production and sales Division
It is mainly produces and sells a variety of well drilling rigs, sub-hole drilling rigs, drilling vehicles and drilling accessories. The company's existing products include 6 series of more than 50 kinds, leading products are: KQZ-100D, KQZ-150D, KQZ-200D submersible drilling rig, FY130, FY150, FY150, FY180, FY200, FY260, FY400, FY600, FY800 and other models of the full-hydraulic driller series, heel tube series, as well as high school low-pressure engineering drill car series.
About brand excavator Marketing Division
We have successfully established strategic partnership with Caterpillar, Komatsu, Levo and Sany Group, and become the general agent of excavator sales of this brand in Henan province China. Through us, you will easily buy equipment of high quality and low price.
Hope we can build good cooperation with you and your company!!!
