|Place of Origin:||China|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||PLASTIC FILM PLAIN PACKAGING|
|Delivery Time:||10 WORKING DAYS|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 SET PRR QUARTER|
|Name:||Lock Rod Rotary Drilling Machine||Max.drilling Diameter:||1500mm|
|Max.drilling Depth:||2500mm||Motor Power:||153kw|
|Machine Weight:||26ton||Warranty:||One Year|

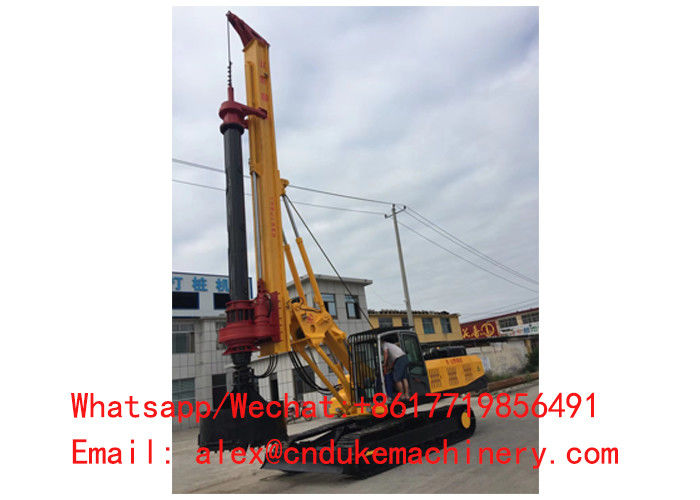

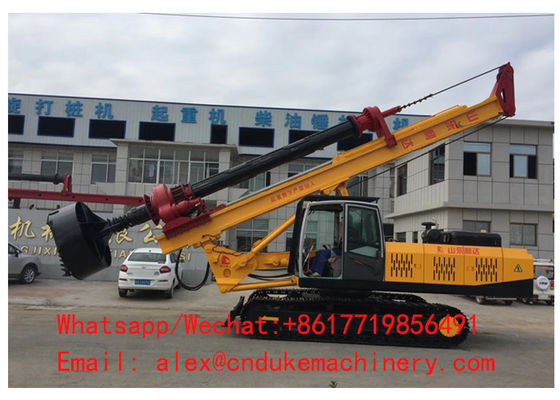

HIGH QUALITY 25M MAX.DRILLING DEPTH SMALL ROTARY DRILLING RIG
Rotary drilling machine introduction
LD525 machine lock rod rotary drilling rig using hydraulic track-type telescopic chassis, self-landing collapsible mast, telescopic drill pipe and many other technical applications, is a suitable for building infrastructure work in the construction machinery. Mainly suitable for sand, clay, powder soil and other geological construction, in perfusion piles, continuous walls, basic reinforcement and other foundation construction has been widely used.
Rotary drilling machine main tecnical data:
|Max. Drilling Diameter||mm||1800||1600||1500|
|Max. Drilling Depth||m||15||20||25|
|Engine||Model||Weifang 6105||Weifang 6105||Cummins C205|
|Rated rotation speed||rpm||2200||2200||2200|
|Rotary Drive||Max. output torque||kN .m||100||100||100|
|Pull-Down Cylinder||Max.pull-down piston push||kN||100||100||100|
|Max.pull-down piston pull||kN||100||100||100|
|Max.pull-down piston stroke||mm||2000||3000||2000|
|Main Winch||Max.pulling force||kN||100||100||100|
|Max. single-rope speed||m/min||70||70||70|
|Diameter of steel wire rope||mm||24||24||28|
|Auxiliary Winch||Max.pulling force||kN||60||60||60|
|Max. single-rope speed||m/min||54||54||54|
|Diameter of steel wire rope||mm||16||16||16|
|Traveling||Max. traveling speed||km/h||2.6||2.6||2.6|
|Dimension||L × W × H||mm||8600*2300*3400||9610*2600*3500||10100*2600*3500|
Rotary drilling machine features:
1. The whole machine shape is small, flexible, especially suitable for a variety of special, narrow, low space industry and civil construction sites.
2. Structurally optimized two-cylinder boom amplitude mechanism, stable operation, easy to maintain and repair.
3. The use of rotary drilling rig dedicated hydraulic track chassis, to meet the super stability and transport convenience.
4. Leading overall transport-type full hydraulic rotary drilling rig, to achieve rapid transition of transport state and construction state.
5. Power head original patented structure design reasonable, reliable lubrication, strong power, cost savings, and not easy to damage, easy to repair.
6. Automatic depth, vertical detection, drilling level at any time control.
Why choose us:
1.All kinds of agreement can be signed with your company if you have any afraid for our products;
2.Quality is our culture ;
3.With us your money in safe, your business in safe ;
4.we think our product will give you an edge over your competitors ;
5.7*24 hours multi-language professional after-sales service group .
We are located in Zhengzhou City, Henan Province At present, we mainly has two business divisions, drilling rig production and sales division and brand excavator marketing division.
About drilling rig production and sales Division
It is mainly produces and sells a variety of well drilling rigs, sub-hole drilling rigs, drilling vehicles and drilling accessories. The company's existing products include 6 series of more than 50 kinds, leading products are: KQZ-100D, KQZ-150D, KQZ-200D submersible drilling rig, FY130, FY150, FY150, FY180, FY200, FY260, FY400, FY600, FY800 and other models of the full-hydraulic driller series, heel tube series, as well as high school low-pressure engineering drill car series.
About brand excavator Marketing Division
We have successfully established strategic partnership with Caterpillar, Komatsu, Levo and Sany Group, and become the general agent of excavator sales of this brand in Henan province China. Through us, you will easily buy equipment of high quality and low price.
Hope we can build good cooperation with you and your company!!!
Contact Person: Mr. Alex
