High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator

High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator

    • High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator
    • High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator
    • High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator
  • High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator

    Product Details:

    Place of Origin: China
    Brand Name: CAT
    Certification: CE
    Model Number: CAT 313D2GC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 3000-100000USD/SET
    Packaging Details: PLASTIC FILM PLAIN PACKAGING
    Delivery Time: 10 WORKING DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 50 SET PRR QUARTER
    Contact Now
    Detailed Product Description
    Name: CAT 313D2GC Hydraulic Excavator Machine Weight: 12500kg
    Max.digging Height: 8510mm Max.unloading Height: 6060mm
    Max.digging Depth: 5580mm Engine Type: Cat C4.4E
    Engine Output Power: 74.5 Kw Warranty: One Year

    CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator



    Machine introduction

    The Cat 313D2GC small type Hydraulic Excavator features a standard tail and fixed side boom design for high performance with low fuel consumption. A durable and reliable structure helps you balance high productivity and low operating costs in a wide range of applications.

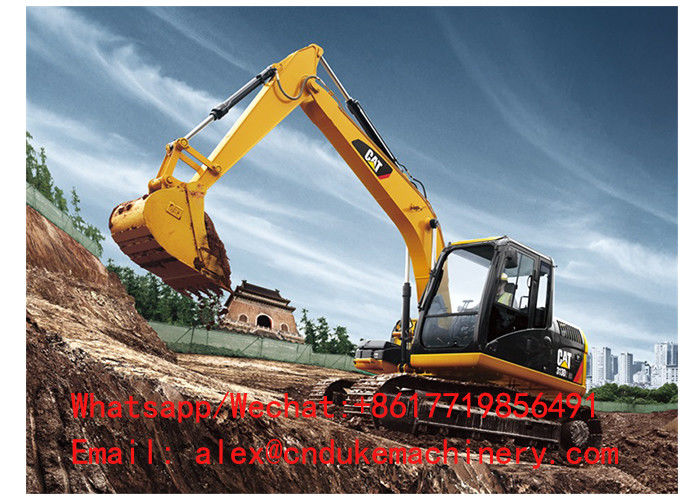

    High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator 0



    Main tecnical data:

    Model 313D2GC
    Operation Weight 12500 kg
    Bucket capacity (m³) 0.53
    Rated Power 74.5 kw
    Engine model Cat C4.4E
    Transport Dimensions (mm) 7610*2490*2830
    Maximum Traction 156 KN
    Device
    Maximum Working Speed 4.8Km/h
    Climbing Performance 30degree
    Radius of tail rotation 2140mm
    Width of the Crawler 500mm
    Turning Speed (rpm) 11.2rpm
    Hydraulic System
    Main Pump Pressure 30500kpa
    Main Pump Flow 232L/min
    Operating Scope
    Maximum Digging Height 8510mm
    Maximum Dumping Height 6060mm
    Maximum Digging Depth 5580mm
    Maximum Digging Radius 8210mm



    CAT 313D2GC multifunction excavator machine features:



    1. Better comfort, operation and visibility of the operator's station.
    The spacious cab offers wide visibility and is at your touch. The monitor features a full-color graphical display, intuitive and high definition, and built-in pre-start machine inspection. Overall, the new cab provides a comfortable working environment that ensures efficient operation throughout the day.

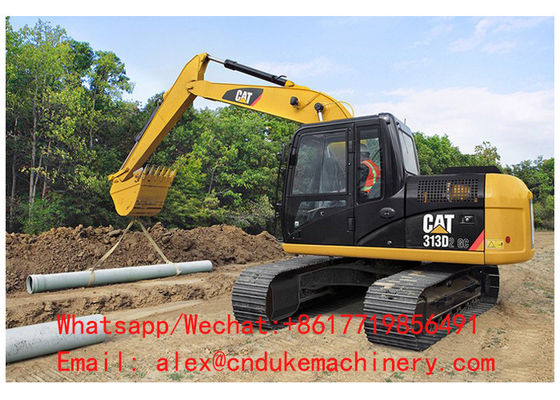

    High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator 1



    2. Engine. Every drop of oil is the most effective.
    Cat C4.4e electronically controlled engines comply with Tier 3, Stage III, Japan 2006 (Tier3) equivalent emission standards or China's Off-Highway Vehicle Stage III emission standards. The engine features a proven mechanical regulator and a low-pressure fuel injection system for superior machine performance and low fuel consumption.



    High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator 2

    3. Chassis systems and structures. Strong, stable and easy to handle.
    Caterpillar uses state-of-the-art engineering and software to analyze all structures to create reliable, durable machines for the most demanding applications. More than 70% of structural welding is done by robots, and the welding penetration is more than three times that of manual welding. These structural components and undersys are key to the durability of the machine.



    High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator 3



    4.  Hydraulic system operation is labor-efficient and precise control for efficient performance.
    The Cat 313D2GC series delivers outstanding performance while reducing operating costs. Unparalleled versatility, better controllability, easy operation and a comfortable operator's station make the 313DGC series an industry leader.

    High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator 4



    5. Easy to service.
    Convenient service features make maintenance easier and reduce downtime:
    The side lift cover provides access to air filters, mains valves, one-way/bidirectional-auxiliary flow selectors, accumulators, fuel filters and hydraulic tanks. This eliminates the need to raise the cab when the machine is serviced and serviced.
    The revolving door provides easy access to major components and service points, including engine oil inspection and perfusion points, vertically mounted engine oil filters, starting motors and alternators.

    High quality CAT 313D2GC Steel Crawler Hydraulic Multifunction Excavator 5



    Why choose us:
    1.All kinds of agreement can be signed with your company if you have any afraid for our products;
    2.Quality is our culture ;
    3.With us your money in safe, your business in safe ;
    4.we think our product will give you an edge over your competitors ;
    5.7*24 hours multi-language professional after-sales service group .



    Company introduction:

    We are located in Zhengzhou City, Henan Province At present, we mainly has two business divisions, drilling rig production and sales division and brand excavator marketing division.
    About drilling rig production and sales Division
    It is mainly produces and sells a variety of well drilling rigs, sub-hole drilling rigs, drilling vehicles and drilling accessories. The company's existing products include 6 series of more than 50 kinds, leading products are: KQZ-100D, KQZ-150D, KQZ-200D submersible drilling rig, FY130, FY150, FY150, FY180, FY200, FY260, FY400, FY600, FY800 and other models of the full-hydraulic driller series, heel tube series, as well as high school low-pressure engineering drill car series.
    About brand excavator Marketing Division
    We have successfully established strategic partnership with Caterpillar, Komatsu, Levo and Sany Group, and become the general agent of excavator sales of this brand in Henan province China. Through us, you will easily buy equipment of high quality and low price.
    Hope we can build good cooperation with you and your company!!!
