Place of Origin: | China |
Brand Name: | Duke |
Certification: | CE |
Model Number: | HBTSS50R |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | 10000USD/SET-100000USD/SET |
Packaging Details: | PLASTIC FILM PLAIN PACKAGING |
Delivery Time: | 10 WORKING DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 SET PRR QUARTER |
Application: | Transport Mortar Or Concrete | Name 01: | Concrete Pump |
---|---|---|---|
Name 02: | Mortar Concrete Pump | Warranty: | 1 Year |
Driving Type: | Diesel |
HBTS50R Big Aggregate Concrete Pump
Concrete pump machine introduction
HBTS/R series concrete pumps can transport concrete with a particle size of 4cm or more, with displacements ranging from 40m3/h to 100m3/h, suitable for the transportation of concrete or mortar for civil construction, transportation, railways, water conservancy, power and national defense projects;
HBTS-R series is a diesel engine-powered concrete pump for remote power-poor areas;
Concrete pump machine technical data:
Item | HBTS4012R | HBTS5012R | HBTS6012R | HBTS8012R |
Max.theory concrete output(m/3h) | 40 | 50 | 60 | 80 |
Max.concrete pumping pressure(MPA) | 12 | 12 | 12 | 12 |
Distribution valve type | S | S | S | S |
Max.transportation distance(vertical) | 90 | 100 | 120 | 150 |
Max.transportation distance(horizontal) | 300 | 400 | 400 | 500 |
Engine type | diesel | diesel | diesel | diesel |
Power (kw)/Weichai | 82 | 82 | 82 | 129 |
Hopper capacity (L) | 680 | 680 | 700 | 680 |
Hopper feeding height(mm) | 1400 | 1400 | 1300 | 1400 |
Max. aggregate diameter(mm) | 40 | 40 | 40 | 40 |
Overall dimension (mm) | 4820*1750*1770 | 4820*1750*1770 | 4820*1750*1900 | 6000*2000*2200 |
Machine weight(kg) | 3900 | 4000 | 5000 | 5800 |

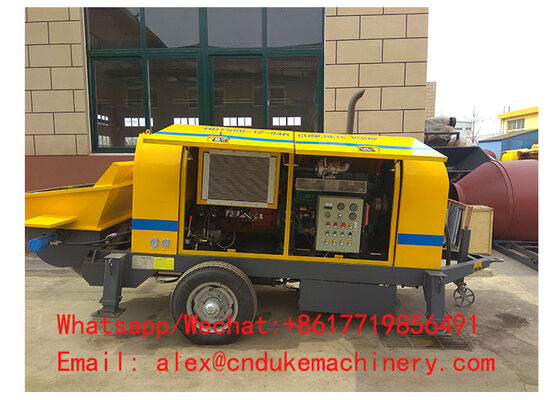

50 Diesel driving concrete pump machine pictures:
Company introduction:
We are located in Zhengzhou City, Henan Province, the Central area of China with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Why choose us:
1.All kinds of agreement can be signed with your company if you have any afraid for our products;
2.Quality is our culture ;
3.With us your money in safe, your business in safe ;
4.we think our product will give you an edge over your competitors ;
5.7*24 hours multi-language professional after-sales service group .
