FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION

FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION

    • FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION
    • FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION
  • FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION

    Product Details:

    Place of Origin: China
    Brand Name: Duke
    Certification: CE
    Model Number: LD515

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 30000-100000USD/SET
    Packaging Details: PLASTIC FILM PLAIN PACKAGING
    Delivery Time: 10 WORKING DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 50 SET PRR QUARTER
    Contact Now
    Detailed Product Description
    Name: Lock Rod Rotary Drilling Machine Max.drilling Diameter: 1800mm
    Max.drilling Depth: 1500mm Motor Power: 113kw
    Machine Weight: 22ton Warranty: One Year
    Max.travling Speed: 2.6km/h

    FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION



    Rotary drilling machine introduction

    LD-515 machine lock rod rotary drilling rig using hydraulic track-type telescopic chassis, self-landing collapsible mast, telescopic drill pipe and many other technical applications, is a suitable for building infrastructure work in the construction machinery. Mainly suitable for sand, clay, powder soil and other geological construction, in perfusion piles, continuous walls, basic reinforcement and other foundation construction has been widely used.



    Rotary drilling machine main tecnical data:

    Item Unit Data
    Model   LD515 LD520 LD525
    Max. Drilling Diameter mm 1800 1600 1500
    Max. Drilling Depth m 15 20 25
    Engine Model   Weifang 6105 Weifang 6105 Cummins C205
    Rated Power kW 113 113 153
    Rated rotation speed rpm 2200 2200 2200
    Rotary Drive Max. output torque kN .m 100 100 100
    Rotary speed r/min 17-45 17-40 17-45
    Pull-Down Cylinder Max.pull-down piston push kN 100 100 100
    Max.pull-down piston pull kN 100 100 100
    Max.pull-down piston stroke mm 2000 3000 2000
    Main Winch Max.pulling force kN 100 100 100
    Max. single-rope speed m/min 70 70 70
    Diameter of steel wire rope mm 24 24 28
    Auxiliary Winch Max.pulling force kN 60 60 60
    Max. single-rope speed m/min 54 54 54
    Diameter of steel wire rope mm 16 16 16
    Traveling Max. traveling speed km/h 2.6 2.6 2.6
    Min.ground claerance mm 340 340 340
    Approach angle ° 21 21 21
    Departure angle ° 18 18 18
    Max.grade ability % 30 30 30
    Weight   t 22 24 26
    Dimension L × W × H mm 8600*2300*3400 9610*2600*3500 10100*2600*3500



    Rotary drilling machine features:

    1. The use of folding mast structure, simple and refined structure, good durability, good stability of the machine, cost savings and maintenance more convenient.
    2. The use of upper guide frame structure, to ensure the verticality of the drill pipe and the ground, construction is more convenient, improve construction efficiency, increase safety.
    3. Power head original patented structure design reasonable, reliable lubrication, strong power, cost savings, and not easy to damage, easy to repair.
    4. Main roll Yang: the use of the original imported hydraulic motor, responsive, can use free decentralization, lifting speed can reach 82m/min, greatly improving construction efficiency. The main roll is placed in front of the right side of the operator, so that the operator can observe the working conditions of the main roll at any time, to avoid other factors caused by the phenomenon of rope disorder.

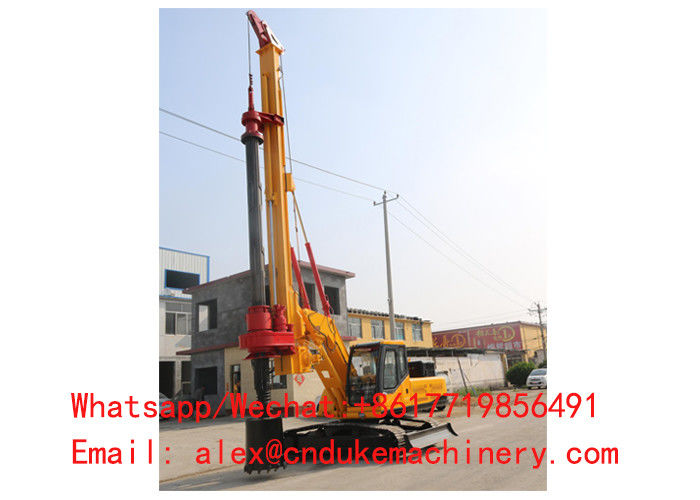

    FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION 0

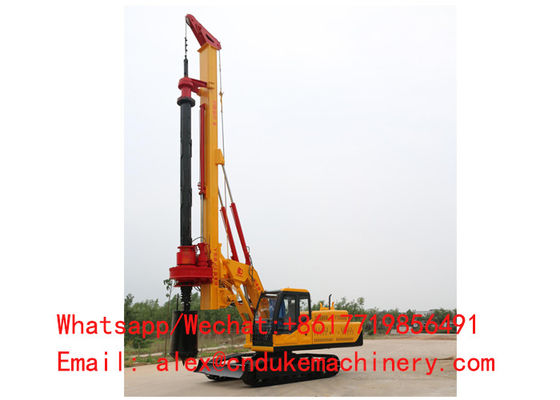

    FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION 1



    Why choose us:
    1.All kinds of agreement can be signed with your company if you have any afraid for our products;
    2.Quality is our culture ;
    3.With us your money in safe, your business in safe ;
    4.we think our product will give you an edge over your competitors ;
    5.7*24 hours multi-language professional after-sales service group .



    Company introduction:

    We are located in Zhengzhou City, Henan Province At present, we mainly has two business divisions, drilling rig production and sales division and brand excavator marketing division.
    About drilling rig production and sales Division
    It is mainly produces and sells a variety of well drilling rigs, sub-hole drilling rigs, drilling vehicles and drilling accessories. The company's existing products include 6 series of more than 50 kinds, leading products are: KQZ-100D, KQZ-150D, KQZ-200D submersible drilling rig, FY130, FY150, FY150, FY180, FY200, FY260, FY400, FY600, FY800 and other models of the full-hydraulic driller series, heel tube series, as well as high school low-pressure engineering drill car series.
    About brand excavator Marketing Division
    We have successfully established strategic partnership with Caterpillar, Komatsu, Levo and Sany Group, and become the general agent of excavator sales of this brand in Henan province China. Through us, you will easily buy equipment of high quality and low price.
    Hope we can build good cooperation with you and your company!!!

    FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION 2

    FACTORY DIRECT 15M-40M ROTARY DRILLING RIG FOR FOUNDATION CONSTRUCTION 3
