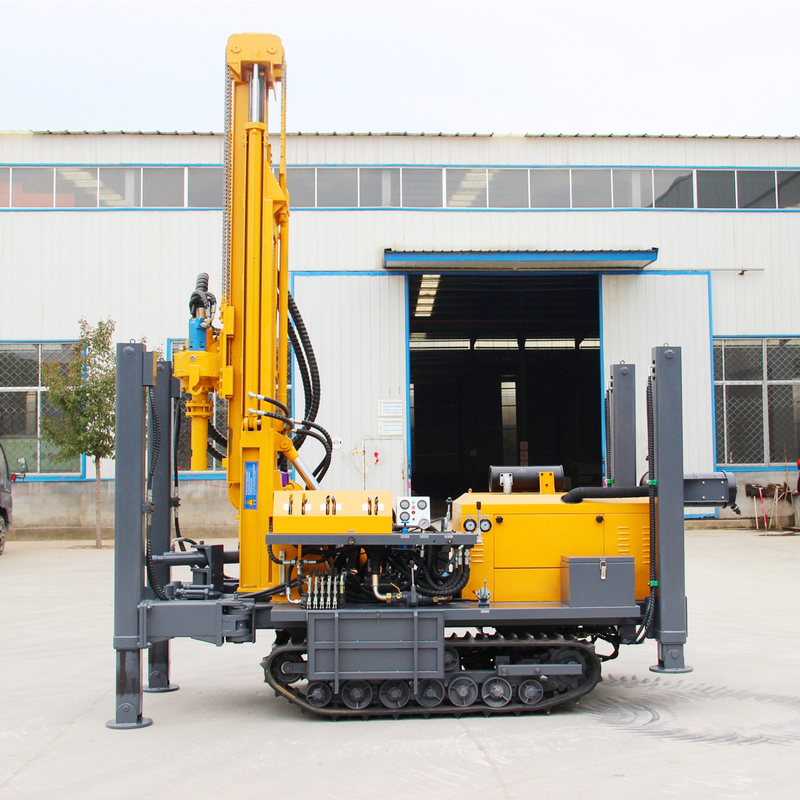

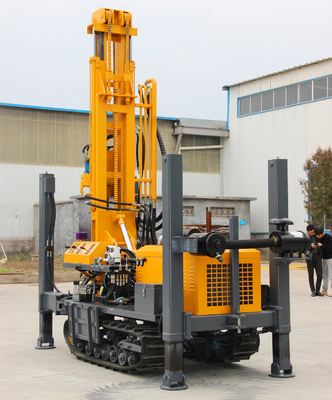

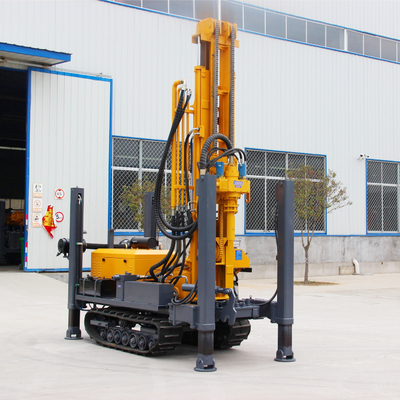

180M depth rubber belt crawler underground water well drilling rig machine

180M depth rubber belt crawler underground water well drilling rig machine

    • 180M depth rubber belt crawler underground water well drilling rig machine
    • 180M depth rubber belt crawler underground water well drilling rig machine
    • 180M depth rubber belt crawler underground water well drilling rig machine
  • 180M depth rubber belt crawler underground water well drilling rig machine

    Product Details:

    Brand Name: Duke
    Model Number: DKX180

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 8000-30000USD/SET
    Packaging Details: PLASTIC FILM PLAIN PACKAGING
    Delivery Time: 10 WORKING DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 50 SET PRR QUARTER
    Contact Now
    Detailed Product Description
    Drilling Hold Diameter: 140-250m Drilling Depth: 180m
    Once-time Advance Length: 3.4m Main Motor Power: 55kw
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Usage: Water Well
    Power Type: Diesel Product Name: Water Well Drilling Rig

    180m Depth Portable Pneumatic Rotary DTH Water Well Drilling Rig



    A: Machine introduction of water well drilling rig

    DK Series Well Drilling Rig is a light, efficient and versatile drilling equipment powered by diesel engine which is from China famous brand. It is mainly suitable for drilling wells, agricultural irrigation wells and other uses, especially for water extraction in mountainous and rock formations engineering.

    In addition,this series of drilling rigs using new hydraulic technology which is equipped with large-bore hydraulic cylinder advancement and high-torque hydraulic motor rotation.

    B: Main technical data of water well drilling rig

    Model DKX180
    Machine weight(T) 4.5
    Drilling hold diameter(M) 140-254
    Drilling depth (M) 180
    Once-time advance length(M) 3.4
    Walking speed (km/h) 2.5
    Max.climbing capacity 30
    Main motor power (kw) 55
    Using air pressure (mpa) 1.7-2.5
    Air consumption (m3/min) 15-27
    Drill pipe diameter (mm) 76/89/102
    Drill pipe length (m) 1.5/2/3
    Rig lifting force(N) 8
    Swing speed (rpm) 48-70
    Swing torque (N.M) 4200-5600

    C: More detail of water well drilling rig

    water well drilling rig 16.jpg

    water well drilling rig 17.jpg

    water well drilling rig 03.JPG

    water well drilling rig 04.JPG

    Details 04.jpg

    D: Packing and shipping about water well drilling rig
    Packaging: General export packing or customized packaging according to your requirement.
    Shipping: Professional goods shipping forwarders.
    Delivery Time: 7 working days after deposit.

    water well drilling rig 14.jpg

    E: After sales service:
    1.We can provide all-round technical guidance ff there is any problem about our machine;
    2.7*24 hours multi-language professional after-sales service group
    3.Construction solutions will be provided for different geological conditions.
    4.All the accessories of that kind of machine can be provided for a long time.

    F: Recommend Air Compressors and accessory for 180m depth portable water well drilling rig

    water well drilling rig 00

    G: Company certificate:

    well drilling rig

    certificate 01

    H: Company workshop environment:

    180M depth rubber belt crawler underground water well drilling rig machine 9

    I: FAQ

    Q1.What is the main function of our well drill rig machine?
    Ans.: It has different models used for water well drill rig machine,mine blast hole drill,underground drill project,etc
    Q2. What is your terms of payment?
    Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
    Q3. What is your terms of delivery?
    Ans.: EXW, FOB, CFR, CIF.
    Q4. How about your delivery time?
    Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
    The specific delivery time depends on the items and the quantity of your order.
    Q5. What is the warranty of our machine?
    Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
    Q6. What is your terms of packing?
    Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
    Q7. Do you test all your goods before delivery?
    Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
    Q8.Do you Preferred provide wear parts for transacted clients?
    Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
    Q9: How do you make our business long-term and good relationship?
    Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
    Q10.Do you have any certificates for your machine?
    Ans.: All of our products coming with the certificates of CE, ISO9001
